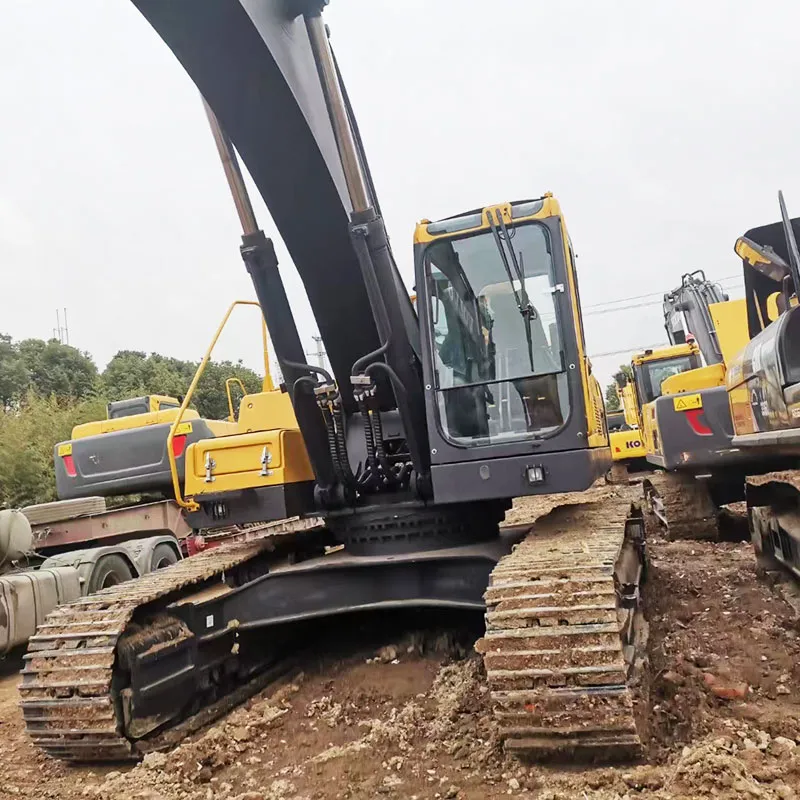

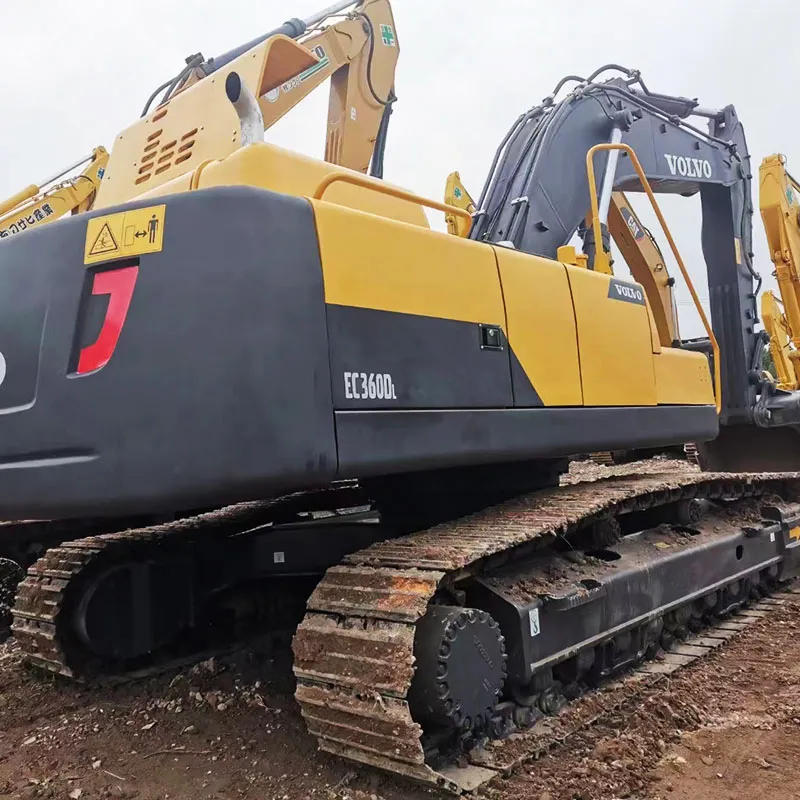

Used Volvo 360 Excavator

Reading: 1985

Here is a comprehensive English introduction to the Volvo EC360 (commonly referred to as the "Volvo 360") excavator:

VOLVO EC360 EXCAVATOR — Comprehensive Introduction

Overview

The Volvo EC360 is a heavy-duty crawler excavator in the 36-tonne class, engineered by Volvo Construction Equipment (Volvo CE) for demanding earthmoving, quarrying, mining, and large-scale construction applications. Renowned for its exceptional fuel efficiency, robust build quality, operator comfort, and advanced hydraulic performance, the EC360 series has been a flagship model in Volvo's excavator lineup across multiple generations — including the EC360B, EC360C, EC360D, and the latest EC360E models.

This machine is designed to deliver high productivity with low operating costs, making it a preferred choice for contractors worldwide who require reliability, power, and precision in tough working conditions.

Key Generations

Generation	Key Highlights
EC360B	Early 2000s model; established Volvo's reputation in the 36t class with Volvo D12D engine, robust hydraulic system, and comfortable cab.
EC360C	Introduced advanced hydraulics, improved fuel efficiency, and upgraded operator environment with better visibility and ergonomics.
EC360D	Featured Tier 4i/Stage IIIB compliant Volvo D13 engine, ECO mode, improved hydraulics, and enhanced telematics (CareTrack).
EC360E	Latest generation (where applicable) with Tier 4 Final/Stage IV engine, electro-hydraulic controls, further fuel savings, and next-gen cab design.

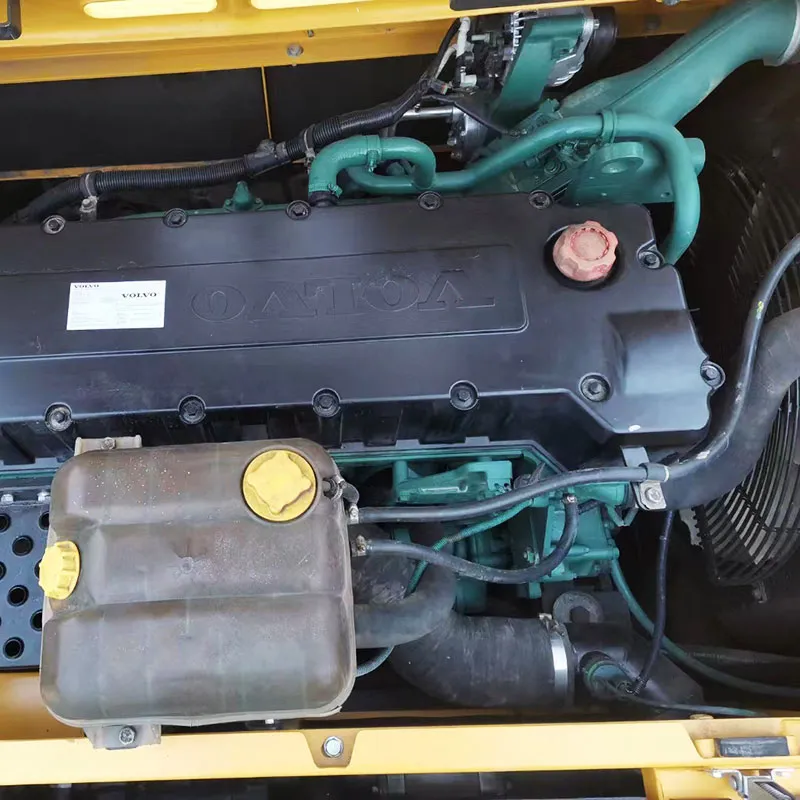

Engine & Power

The Volvo EC360 is powered by a heavy-duty, low-emission Volvo diesel engine designed and manufactured in-house, ensuring perfect integration with the machine's hydraulic and cooling systems.

Engine Model (EC360D/E): Volvo D13J (or D13H)
Type: 6-cylinder, 4-stroke, turbocharged, direct-injection diesel engine with intercooler
Displacement: Approx. 12.8 litres
Net Power (SAE J1349): Approximately 200–210 kW (268–282 hp)
Max Torque: ~1,360 Nm at 1,350 rpm
Emission Standards: Tier 4 Final / Stage IV (latest models), equipped with SCR (Selective Catalytic Reduction) and DPF (Diesel Particulate Filter) after-treatment systems

The engine delivers high torque at low RPM, enabling powerful digging and lifting performance while maintaining excellent fuel economy. The automatic engine speed reduction and engine shutdown features further reduce fuel consumption and noise during idle periods.

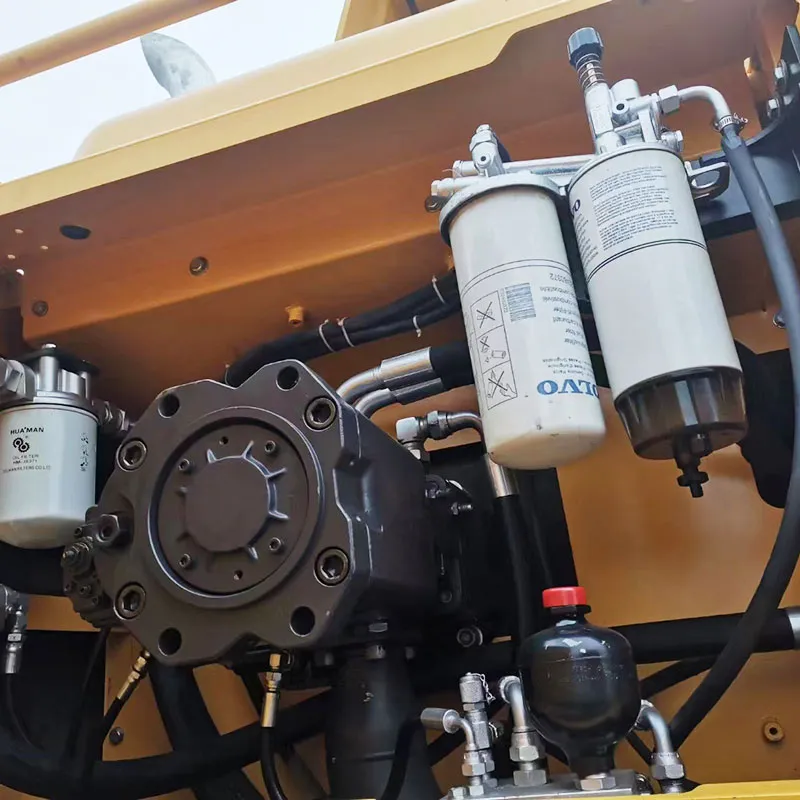

Hydraulic System

Volvo is famous for its state-of-the-art hydraulic systems, and the EC360 is no exception. The machine features a load-sensing, flow-sharing hydraulic system that ensures smooth, precise, and simultaneous multi-function operation regardless of load.

System Type: Positive flow control / electro-hydraulic load-sensing
Main Pumps: 2 × variable displacement axial piston pumps + 1 × gear pump (pilot system)
Max Flow Rate: Approx. 2 × 300–320 L/min (total ~600+ L/min)
System Pressure (Implement): Up to 34.3–35.3 MPa (5,000–5,120 psi)

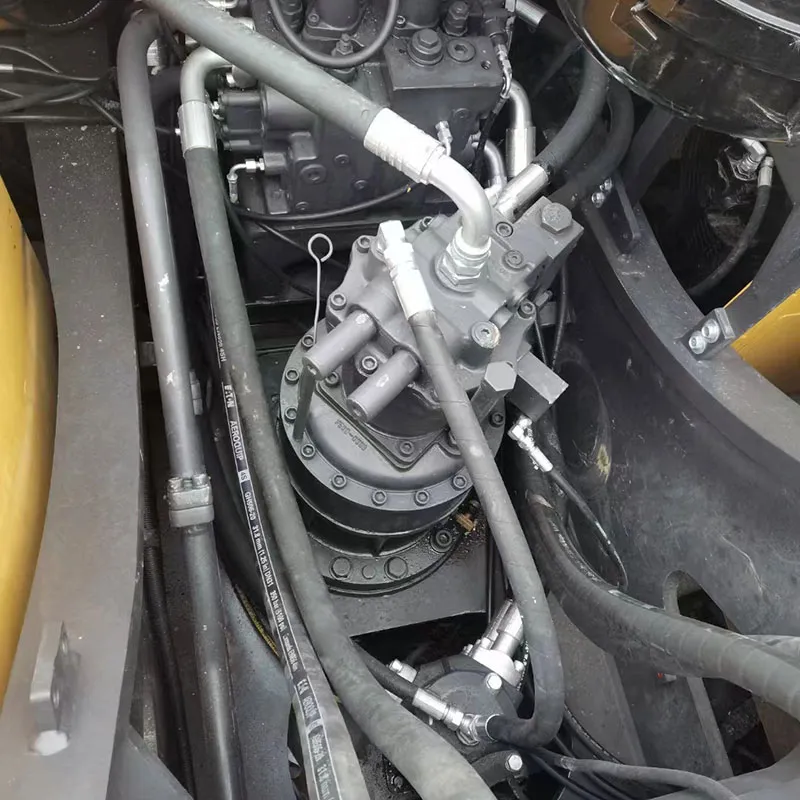

Swing System: Dedicated axial piston motor with priority flow
Hydraulic Oil Capacity: ~380–420 litres

The boom and arm regeneration system recirculates oil to speed up movements and reduce energy loss. The optional hydraulic quick-coupler circuit and attachment management system allow seamless switching between buckets, hammers, shears, grapples, and other tools — with pre-set flow and pressure settings stored in the monitor.

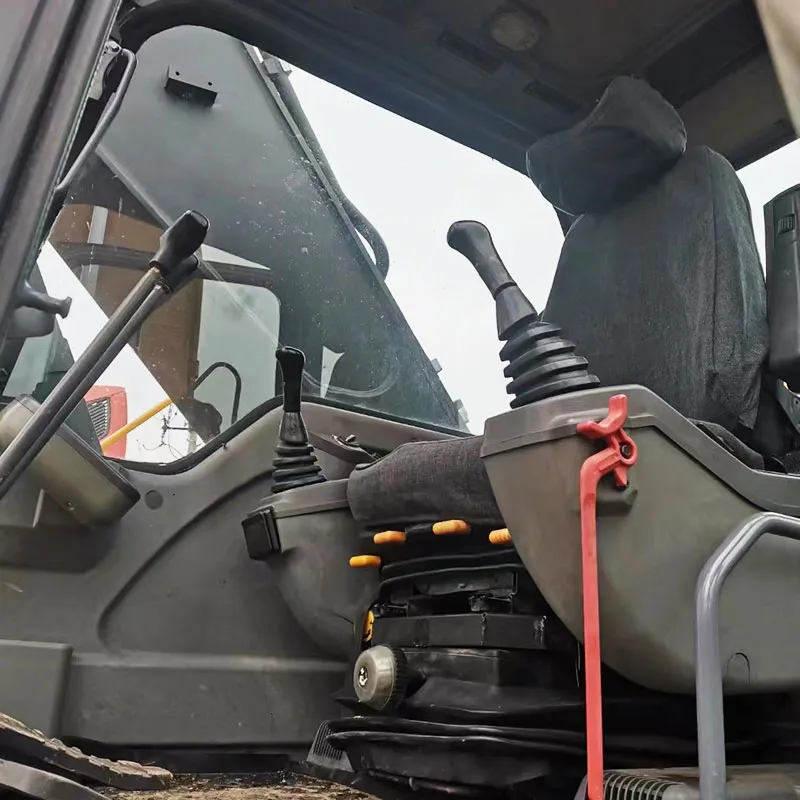

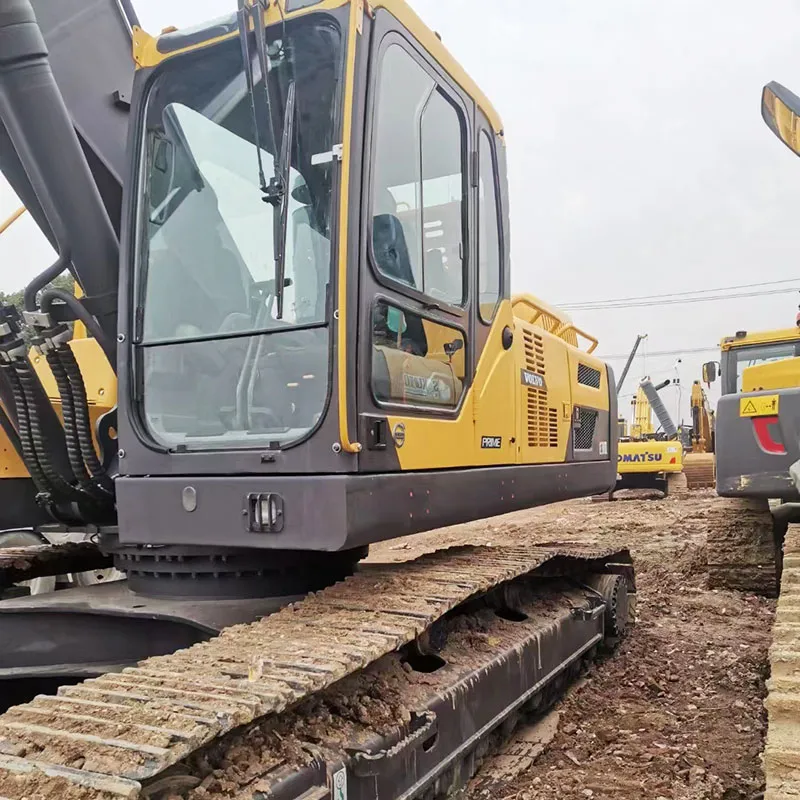

Operator Environment — Volvo Care Cab

Operator comfort is a hallmark of Volvo excavators. The ROPS/FOPS-certified Volvo Care Cab provides a safe, quiet, and ergonomic workspace that reduces fatigue during long shifts.

Cab Features:

Excellent all-around visibility with large tinted safety glass windows and narrow cab pillars
Adjustable heated air-suspension seat with lumbar support and multi-position adjustment
Automatic climate control (HVAC) with filtered fresh air intake
Low interior noise levels (~70 dB(A))
Ergonomically positioned joystick controls with proportional fingertip switches for attachments
7-inch (or larger) LCD colour monitor displaying machine status, camera views, fuel consumption, service intervals, and settings
Bluetooth connectivity, radio, and USB/AUX ports
Adjustable wrist rests and ample storage compartments
Optional rear-view and side-view cameras for enhanced jobsite safety
LED working lights for night operations

Structure & Durability

The EC360 is built on a heavy-duty reinforced undercarriage and superstructure frame, designed to withstand severe torsion and impact loads encountered in rock excavation, demolition, and heavy lifting.

Track Frame: Heavy-duty welded X-frame with sealed and lubricated track chains
Track Shoes: Triple-grouser shoes (various widths available: 600 mm, 700 mm, 800 mm, 900 mm)
Track Rollers: 8 bottom rollers and 2 top rollers per side
Undercarriage Options: Standard, long (L), and long-narrow (LN) configurations for different stability and transport requirements
Counterweight: Heavy cast counterweight for excellent lift capacity and stability
Boom & Arm Configurations:
- Boom: 6.45 m (standard) or 7.0 m (long reach)
- Arms: 2.55 m, 3.2 m, 4.0 m (various lengths for digging depth vs breakout force optimisation)
Bucket Capacity: 1.4–2.5 m³ (heaped), depending on material density and bucket type (GP, heavy-duty, rock bucket)

Technical Specifications (Typical EC360D/E)

Parameter	Value
Operating Weight	35,500 – 38,500 kg
Engine Power (Net)	200–210 kW (268–282 hp)
Max Digging Reach	10.6 – 11.2 m
Max Digging Depth	6.8 – 7.5 m
Max Dumping Height	6.9 – 7.3 m
Bucket Breakout Force (SAE)	~200–230 kN
Arm Tearout Force (SAE)	~155–180 kN
Swing Speed	9.0–10.0 rpm
Travel Speed (Low/High)	3.2 / 5.3 km/h
Drawbar Pull	~300 kN
Tail Swing Radius	3,450–3,550 mm
Fuel Tank Capacity	520–620 litres
Hydraulic Tank Capacity	200–240 litres
Overall Length	~11,200 mm
Overall Width	3,200–3,400 mm
Overall Height (to cab top)	~3,200 mm

Advanced Technologies

Volvo CareTrack™ Telematics

A satellite-based remote monitoring system that provides real-time data on machine location, fuel consumption, operating hours, geo-fencing alerts, and service reminders — accessible via web portal or mobile app.

ECO Mode & Work Modes

Multiple selectable work modes (Idle, Fine, General, Heavy, Power Max) allow the operator to match engine RPM and hydraulic flow to the task, optimising fuel economy without sacrificing performance.

Electro-Hydraulic Controls (E-Series)

The latest EC360E models feature advanced electro-hydraulic joysticks that can be customised for sensitivity and response. This system also enables optional Volvo Active Control, an advanced machine guidance system that automates boom and bucket movements for precision grading.

Smart Cooling System

The hydraulically driven, electronically controlled cooling fan adjusts speed based on ambient and operating temperatures, reducing fuel consumption and noise while ensuring optimal cooling.

Maintenance & Serviceability

Volvo designs its excavators for easy daily maintenance and extended service intervals, maximising uptime and reducing total cost of ownership.

Ground-level service access: Engine oil, coolant, fuel filters, grease points, and hydraulic oil checks can be performed from ground level.
Wide-opening service doors on both sides and rear for easy engine and component access.
Grouped filters and grease points for quick servicing.
Extended oil change intervals: Engine oil and filter changes at 500–1,000 hours (depending on conditions).
Reversible hydraulic cooling fan automatically reverses to clean out debris from radiators.
CareTrack alerts notify fleet managers of upcoming service needs.

Applications

The Volvo EC360 excavator is versatile across a wide range of applications:

Heavy Earthmoving & Mass Excavation — Large bucket capacities for high-volume material handling
Quarrying & Aggregate — Powerful breakout forces for loading blasted rock
Mining Support — Reliable performance in harsh mine environments
Demolition — High-reach and heavy-duty configurations available
Deep Excavation & Trenching — Excellent digging depth and reach
Lifting & Pipe Laying — Superior lift capacity and stability
Road & Infrastructure Construction — Ideal for bridge foundations, culverts, and large-scale civil works

Attachments Compatibility

The EC360 can be equipped with a wide variety of Volvo-approved attachments:

General Purpose, Heavy-Duty, and Rock Buckets
Hydraulic Breakers (up to 4,000 kg class)
Multi-Processors & Demolition Shears
Grapples & Sorting Grapples
Rippers & Compaction Wheels
Tiltrotators (for enhanced versatility)
Long-Reach Boom & Arm Kits

Summary — Why Choose the Volvo EC360?

Proven Volvo D13 engine — Powerful, reliable, and fuel-efficient
Advanced hydraulics — Smooth, precise, and productive operation
Industry-leading cab comfort — Low noise, excellent visibility, ergonomic controls
Heavy-duty durability — Built for the toughest jobsites
Low total cost of ownership — Long service intervals, excellent fuel economy, high resale value
Comprehensive dealer support — Global Volvo CE dealer network with genuine parts, trained technicians, and service agreements

The Volvo EC360 represents a perfect balance of power, precision, and economy in the 36-tonne excavator class — a true workhorse engineered to deliver maximum uptime and profitability for serious contractors.

For the most accurate and up-to-date specifications, please refer to the official Volvo Construction Equipment product brochure or consult your local Volvo CE dealer, as specifications may vary by market, generation, and configuration.

Non flooded

No accident

Original product

Used Volvo 360 Excavator
