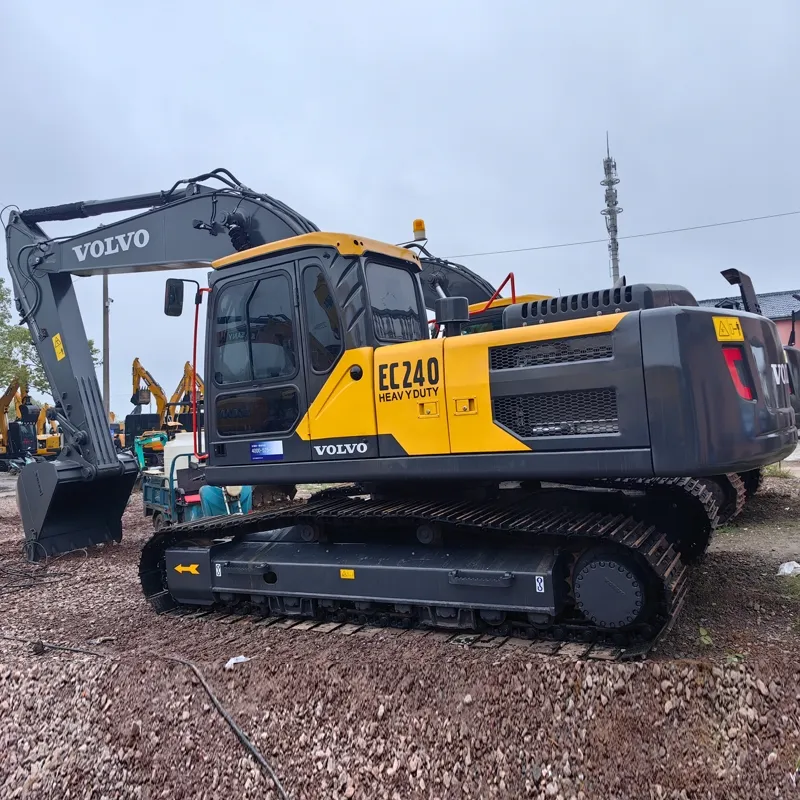

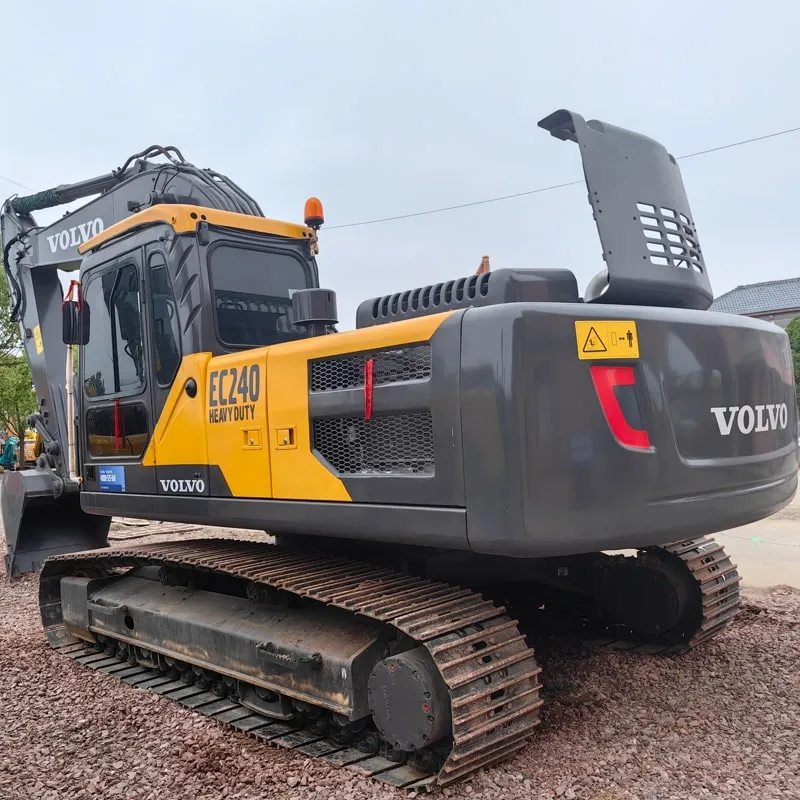

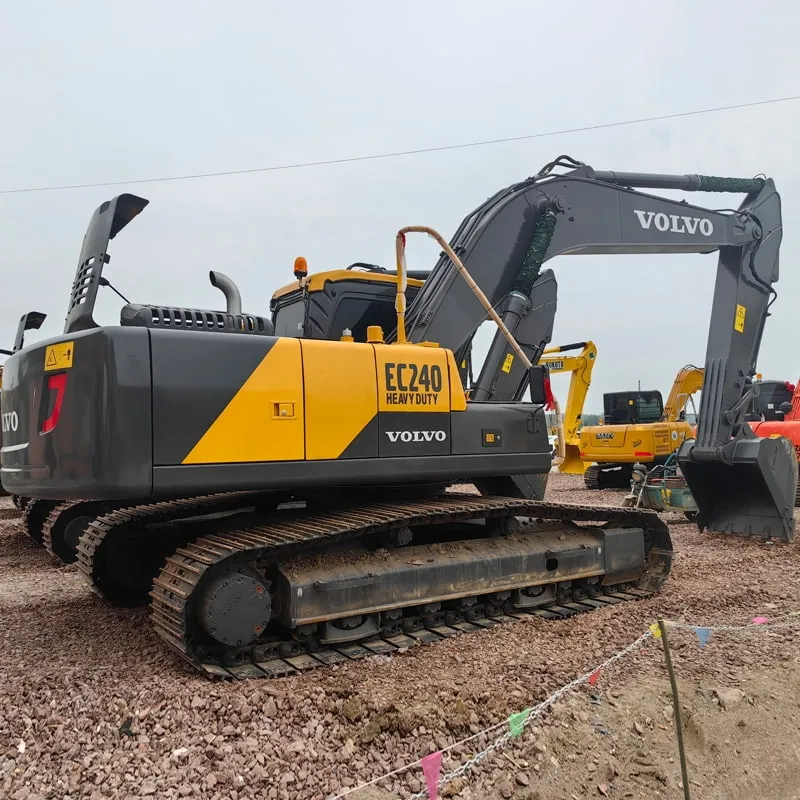

Detailed Introduction to Volvo EC240 (Volvo 240) Crawler Excavator

The Volvo EC240 series (commonly referred to as the Volvo 240 excavator) is a market-leading mid-size crawler excavator developed and produced by Volvo Construction Equipment, a core business segment of the Volvo Group. Positioned in the 24-ton class, it is widely recognized globally for its high fuel efficiency, strong durability, precise controllability and low total cost of ownership. The series has gone through multiple iterative upgrades, including the classic EC240B, mid-term EC240D, and the latest EC240E (compliant with EU Stage V / China National IV emission standards) launched in 2020, with continuous optimization in power, environmental performance, intelligence and operator comfort.

1. Core Performance Parameters (Standard EC240E Configuration)

Item	Specification
Operating Weight	23,500 – 26,000 kg
Net Rated Power	129 kW (173 hp) @ 2,000 rpm
Emission Standard	EU Stage V / US Tier 4 Final / China National IV
Bucket Capacity Range	0.8 – 1.7 m³
Max Digging Depth	6,730 mm
Max Digging Reach	10,280 mm
Max Dumping Height	7,110 mm
Max Travel Speed	5.5 km/h
Gradeability	35° (70%)
Internal Cab Noise Level	≤72 dB(A)

2. Core Advantages and Technical Features

2.1 High-Efficiency Powertrain

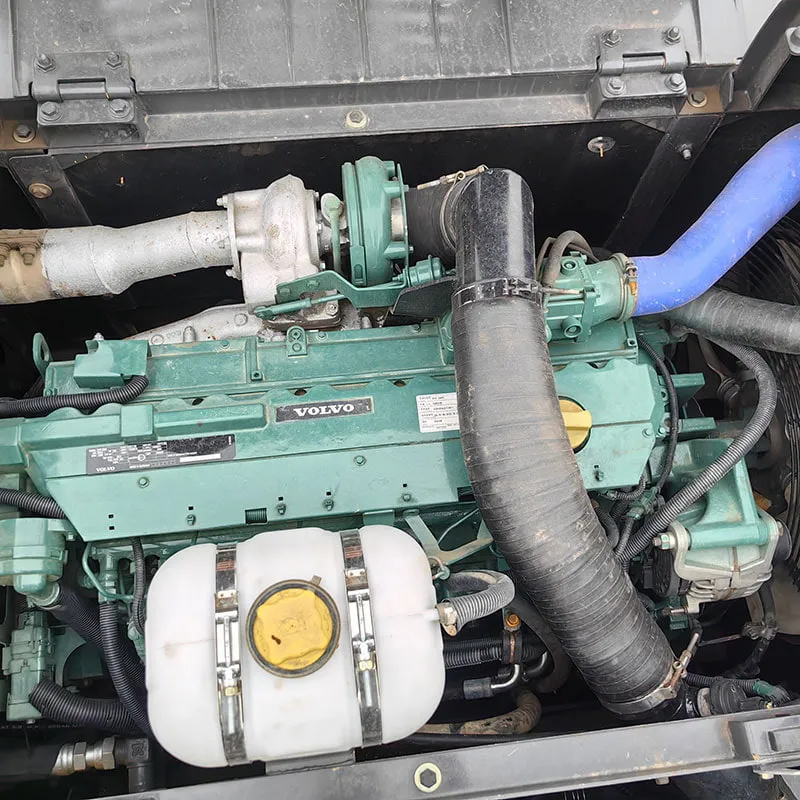

The EC240E is equipped with the self-developed Volvo D6M 4-stroke turbocharged diesel engine, featuring high low-end torque (peak torque of 870 N·m @ 1,350 rpm) and strong heavy-load adaptability. The high-pressure common rail fuel injection system, combined with the standard ECO working mode and automatic idle shutdown function, reduces fuel consumption by 6~10% compared with the previous generation EC240D, while ensuring no loss of operation efficiency. The low-emission design also meets the strict environmental protection requirements of European, North American and Chinese markets.

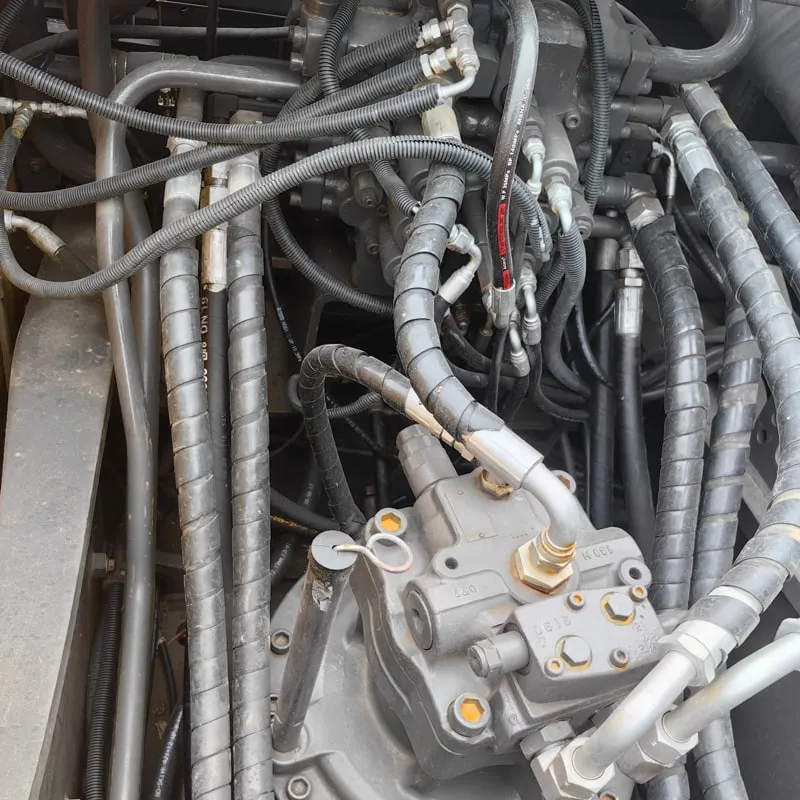

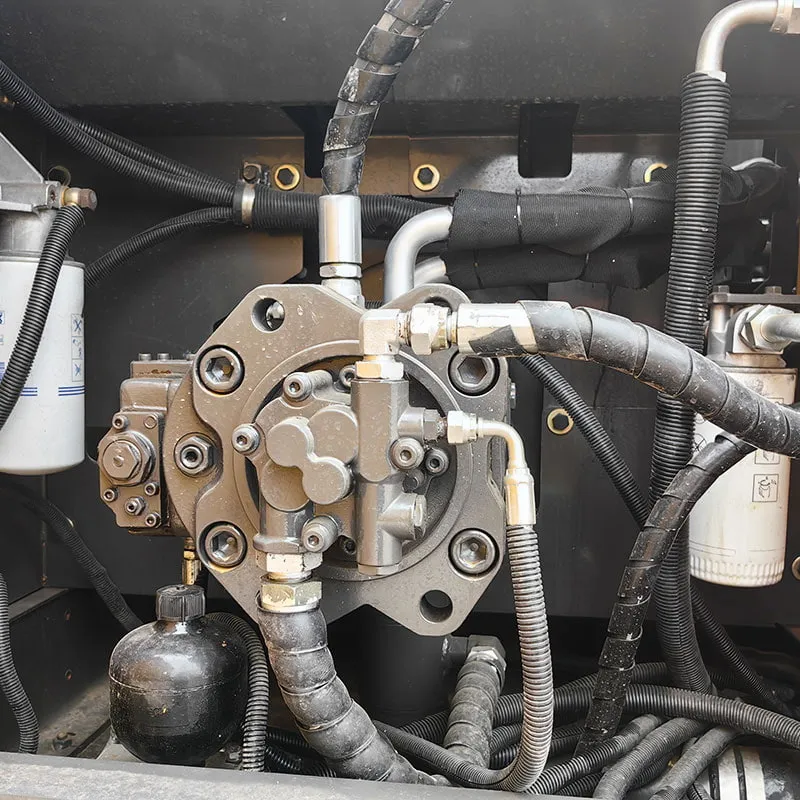

2.2 Precise Hydraulic System

It adopts Volvo’s exclusive advanced load-sensing hydraulic system with flow-on-demand technology, which precisely matches hydraulic flow according to actual operation needs. The independent control valves for boom, arm and bucket ensure smooth compound actions, excellent micro-maneuverability for fine finishing work (such as trench leveling, pipeline laying) and strong breakout force (max bucket breakout force of 167 kN, max arm breakout force of 124 kN) for heavy digging conditions. The system also minimizes pressure loss, further reducing energy waste.

2.3 Operator-Centric Cab Design

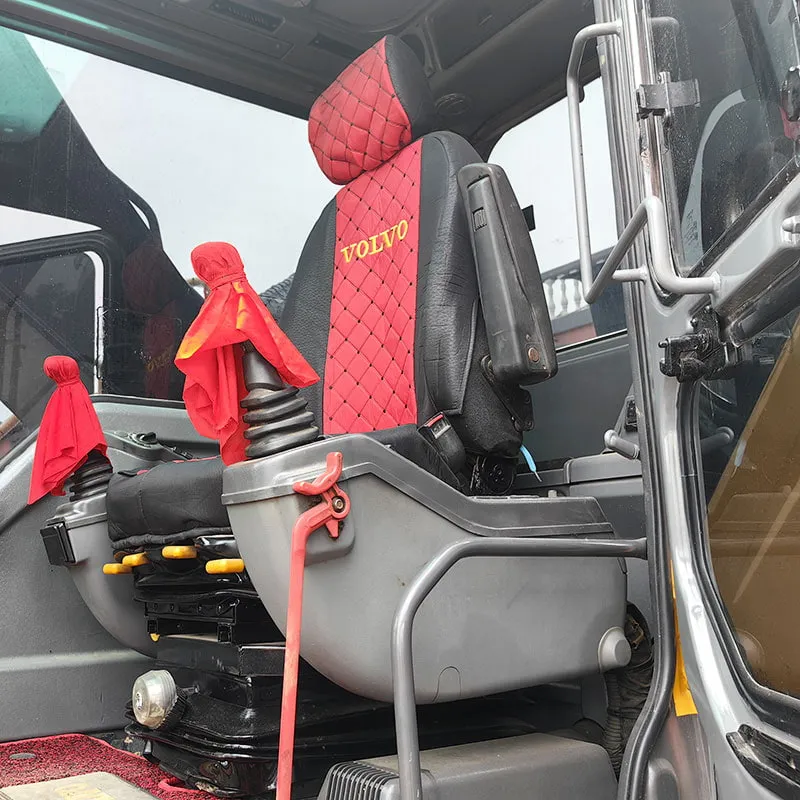

The cab is certified with ROPS (Roll-over Protective Structure) and FOPS (Falling-object Protective Structure) as standard, providing all-round safety protection for operators.
It is equipped with a high-damping adjustable seat, low-vibration mounting design, and multi-zone automatic air conditioning, greatly reducing long-term operation fatigue.
The 8-inch high-definition color display shows real-time operation data, and the standard rear-view camera + optional 360° surround view system eliminates blind spots.
All control levers are ergonomically arranged, and the sealed cab isolates external noise to create a quiet working environment.

2.4 Durability and Low Maintenance Cost

The boom, arm and main frame are made of high-strength wear-resistant steel, with reinforced welding at high-stress points, adapted to long-term heavy-load operation in harsh environments such as quarries and mines.

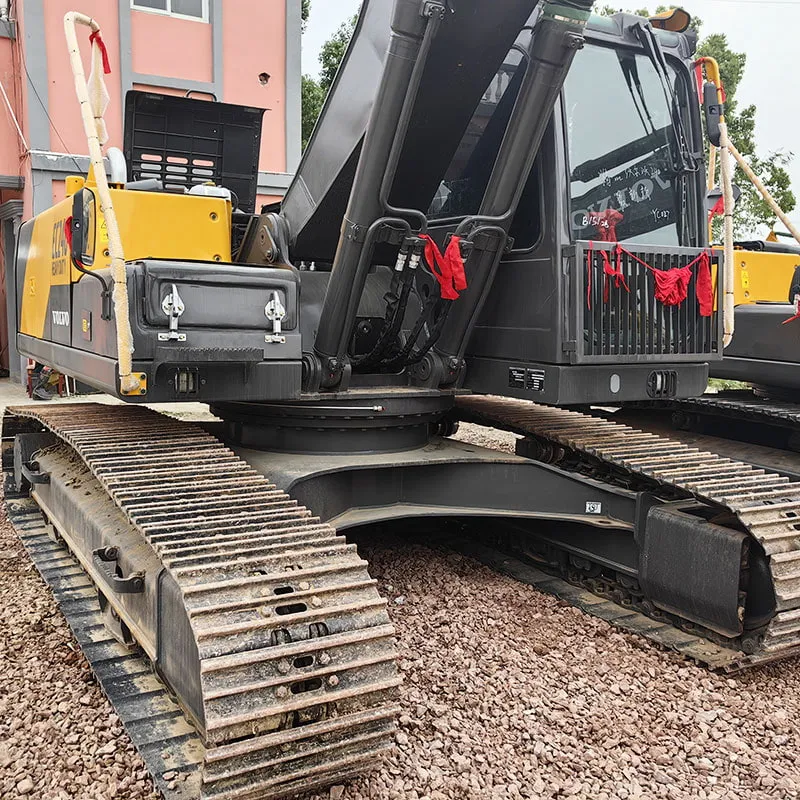

The chassis components (track shoes, idlers, support rollers) adopt high-hardness forging technology, with a service life 20% longer than similar products.
All daily maintenance points are designed for ground-level access, avoiding high-altitude operation risks. Extended service intervals: engine oil and filter replacement every 500 hours, hydraulic oil replacement every 5,000 hours, air filter replacement every 1,000 hours under normal conditions, greatly reducing downtime and maintenance costs.

2.5 Intelligent Management System

The standard Volvo CareTrack telematics system supports remote real-time monitoring of the excavator’s location, working hours, fuel consumption, fault alerts and maintenance reminders, helping fleet managers optimize scheduling, reduce improper operation and avoid unexpected breakdowns.

3. Application Scenarios

The EC240 series is highly adaptable to a wide range of working conditions:

Urban construction: municipal pipeline laying, trench digging, small and medium-sized building demolition, landscaping
Quarry and mining: overburden stripping, ore loading, site leveling
Infrastructure: road construction, bridge foundation excavation, water conservancy project construction
Special operations: forestry clearing, waste sorting, agricultural land reconstruction after matching with special attachments

4. Optional Configurations and Attachments

Volvo provides a full range of customized configurations and factory-matched attachments for the EC240 series to expand its functional scope:

Chassis options: standard track, wide track (for soft ground/marsh conditions), heavy-duty track (for quarry working conditions)
Working device options: standard boom/arm, extended boom/arm (for long-reach operations)
Attachments: hydraulic breaker, wood/stone grapple, hydraulic shear, ripper, screening bucket, auger, quick coupler, etc.

5. After-sales Support

Volvo has a global dealer network covering more than 180 countries and regions, providing:

Standard 1-year/2,000-hour warranty, with optional extended warranty packages up to 3 years/6,000 hours
24/7 on-site rescue service, and 100% original spare parts supply
Professional operator training and regular maintenance services
Higher resale value than most similar products in the second-hand market, further reducing the total cost of ownership in the full life cycle.

Non flooded

No accident

Original product
