Used Caterpillar 16G Grader

Reading: 2093

Here is a detailed introduction to the Caterpillar 16G in English. Please note that while you referred to it as a bulldozer, the 16G is actually a motor grader — a very large one — and this distinction is important for understanding its design and purpose.

Caterpillar 16G Motor Grader – Comprehensive Overview

Introduction and Clarification

Although sometimes mistakenly called a bulldozer due to its heavy blade and earthmoving capability, the Caterpillar 16G is a motor grader, one of the largest and most powerful models in Caterpillar’s legendary G-Series. Designed for high-volume grading, road maintenance, and heavy-duty site preparation, the 16G was a flagship machine that set the standard for productivity and durability from the 1970s through the 1990s.

Historical Background

The 16G was introduced in 1973 as the successor to the 16E and the largest member of the G-Series grader family, which also included the popular 12G and 14G. The G-Series marked a significant evolution in Caterpillar’s grader design, featuring a more comfortable operator station, improved hydraulics, and the powerful 3406 engine platform. Production of the 16G ran until 1995, when it was replaced by the more powerful 16H. Over its 22-year production life, the 16G underwent continuous improvements, including engine upgrades from the 3406 to the 3406B and later 3406C, with corresponding power increases.

Engine and Performance

The heart of the 16G is the Caterpillar 3406 family of in-line six-cylinder, four-stroke diesel engines. Key specifications include:

Configuration: In-line 6, turbocharged and aftercooled (DITA – Direct Injection Turbocharged Aftercooled).
Displacement: 14.6 litres (893 cubic inches).
Power output: Early models produced approximately 225 horsepower (168 kW); later versions with the 3406B and 3406C delivered 250 hp (186 kW) at 2,100 rpm. Some final configurations were rated up to 275 hp.
Torque: High torque rise at low engine speeds provided excellent lugging capability during heavy grading.
Fuel system: Direct injection with a reliable, mechanically governed fuel system, known for easy field service.The engine was matched to a heavy-duty cooling system with a large-capacity radiator, enabling continuous operation in high-ambient-temperature environments such as mines and desert road projects.

Transmission and Drivetrain

The 16G is equipped with a Caterpillar planetary power-shift transmission offering:

8 forward gears and 6 reverse gears, providing a wide speed range from precise fine-grading speeds (as low as 3.0 km/h / 1.9 mph) to a maximum road speed of approximately 43 km/h (27 mph).
Direct-drive feature in higher gears, which eliminates torque converter losses for fuel-efficient roading and light grading.
A torque converter with lock-up clutch for smooth starts and heavy pull loads.

The grader uses a tandem-drive rear axle configuration with two axles on the rear bogie. Both axles are driven through a fully enclosed, oil-lubricated final drive system. A No-SPIN differential automatically transfers torque to the wheel with the best traction, which is essential for working on loose or slippery surfaces. The front axle is a steering axle only (not driven in the standard 16G), although front-wheel drive was offered as an option on later G-Series graders (typically the 16G was purely rear-wheel drive, with all-wheel drive becoming more common in the H-Series).

Frame, Articulation and Steering

The 16G features a robust, welded box-section main frame. A key innovation for graders of this era was frame articulation:

The machine articulates ±20 degrees at a heavy-duty hinge point behind the cab, dramatically reducing turning radius and allowing the blade to be offset for working around curves and obstacles.
Front-wheel steering provides up to 50° left and right, while the articulation adds a further 20°, resulting in a minimum turning radius of approximately 11 metres (36 feet) for a machine of this size.
A rigid, high-clearance drawbar and circle assembly supports the blade and allows 360° circle rotation under hydraulic power.

Blade and Implement Controls

The standard moldboard blade for the 16G is a substantial tool:

Blade dimensions: 4.27 metres (14 feet) wide × 686 mm (27 inches) high × 25 mm (1 inch) thick, fabricated from high-carbon steel with replaceable cutting edges and end bits.
Blade positioning: Hydraulic controls allow the operator to lift, lower, tilt (side shift the blade relative to the circle), pitch (change the cutting angle), and rotate the circle. The blade can be positioned well outside the wheelbase for ditching and sloping, and the high-reach arrangement enables cutting of high banks.
Optional attachments: The 16G can be fitted with a rear-mounted ripper (single- or multi-shank) for breaking up hard ground or asphalt, and a front-mounted scarifier or dozer blade for light pioneering work.All implement controls are actuated by an advanced (for its time) low-effort hydraulic system with a gear-type pump and closed-centre valves for precise, feathering control.

Operator Station and Comfort

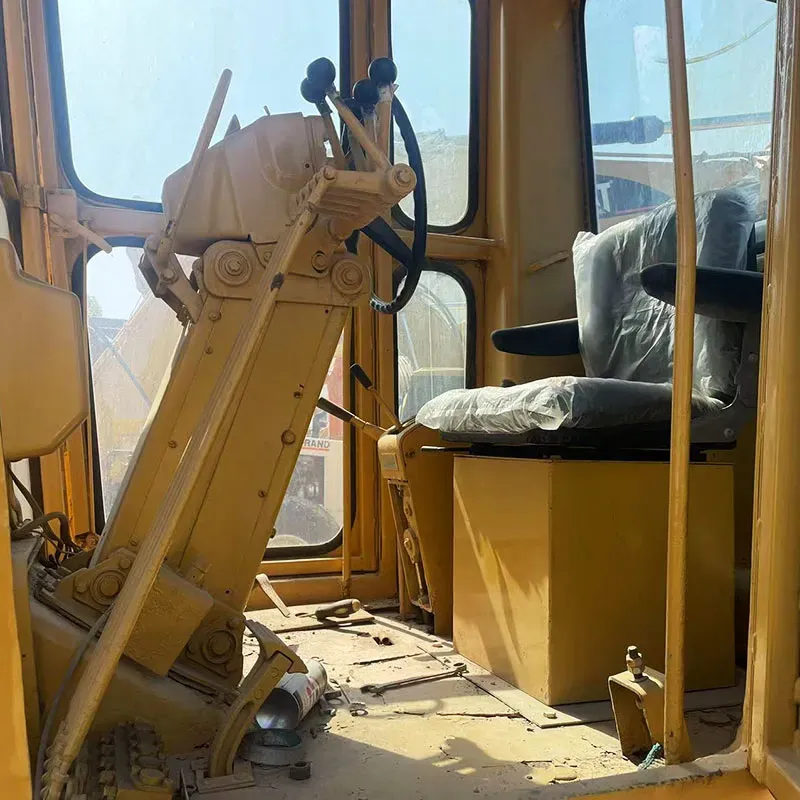

The G-Series introduced a major leap in operator comfort over earlier Caterpillar graders. The 16G cab features:

ROPS (Roll-Over Protective Structure) and optional FOPS (Falling Object Protective Structure) certification.
An adjustable, air-suspension seat and a tilt/telescoping steering wheel to reduce fatigue during long shifts.
Excellent all-around visibility through large glass panels, with the sloping rear window allowing a clear view of the blade and circle.
A well-organised instrument panel with clear gauges for engine, transmission and hydraulic system monitoring.
Options included air conditioning, a heater, and a pressurised cab to keep out dust — a vital feature for mine and quarry work.

Weight, Dimensions and Capacities

Typical operating specifications for a fully equipped 16G are:

Operating weight: Approximately 24,500 – 25,500 kg (54,000 – 56,200 lb), depending on attachments and ballast.
Overall length: About 9.3 metres (30.5 feet).
Wheelbase: 6.4 metres (21 feet) between the front axle and the centre of the tandem bogie.
Fuel capacity: Roughly 500 litres (132 US gallons), enough for a full day of continuous operation.
Hydraulic system capacity: Around 90 litres (24 US gallons).
Ground clearance: Over 350 mm (14 inches) at the transmission, allowing it to straddle windrows and rough terrain.

Typical Applications

The 16G was designed for large-scale earthmoving and finishing work where precision and power are paramount:

Highway and road construction: Final grading of sub-base and base courses, maintaining exact cross-slopes.
Mining and quarry haul roads: Keeping haul roads smooth and free of corrugations to extend truck tyre and component life.
Airport runway and large pad construction: The long wheelbase and wide blade allow precise levelling over vast areas.
Ditching, bank sloping and land reclamation: Thanks to its blade reach and articulation.
Snow removal: When equipped with a V-plough or wing blade, the 16G is highly effective for clearing highways.

Legacy and Conclusion

The Caterpillar 16G remains highly respected in the used equipment market today. Its reputation is built on a robust powertrain, simple and serviceable mechanical systems, and the exceptional control that experienced operators demand. It bridged the gap between older manual-control graders and the electronically controlled H and M Series that followed. While later models offer more horsepower and advanced joystick controls, the 16G’s blend of raw power, straightforward design, and all-day operator comfort ensures that thousands of these machines are still working productively across the globe, a testament to Caterpillar’s engineering of that era.
