Used Caterpillar D7H Bulldozer

Reading: 2154

The Caterpillar D7H is not actually a motor grader—it is a heavy-duty track-type tractor (often called a bulldozer) that is widely used for earthmoving, grading, and dozing operations. While the term “grader” is sometimes loosely used to describe any machine that can smooth ground, in Caterpillar’s official lineup the D7H belongs to the crawler tractor family. The following detailed introduction treats the D7H as the legendary dozer it is, clarifying its role in grading and finishing work where appropriate.

1. Overview and Historical Context

The Caterpillar D7H is part of the long-running D7 series of crawler tractors, a line that traces its roots back to the original D7 introduced in 1938. The “H” suffix denotes the H-series (often associated with the 1980s–1990s production), which brought significant advances in operator comfort, serviceability, and powertrain design.

Manufacturer: Caterpillar Inc.
Model: D7H (Track-Type Tractor)
Production Years: Approximately late 1980s through the mid-1990s (succeeded by the D7R)
Market Position: Medium-to-large dozer, slotting between the D6 and the D8. It is designed for severe-duty earthmoving, land clearing, road construction, and finish grading on large sites.

While a dedicated motor grader (like the Cat 140H) is built specifically for fine surface leveling with a long wheelbase moldboard, the D7H often does rough grading and heavy push work that motor graders cannot handle. Many operators use the D7H with a Pat blade (angled blade) or 6-way power-angle-tilt (PAT) blade to achieve surprisingly good final grade results, blurring the lines somewhat in the field.

2. Key Design and Styling Features

The D7H marked a transition from the older mechanical-control tractors to a more modern, ergonomic machine. Externally, it retains the classic Caterpillar look with a distinct squared-off engine hood, high-mounted sprocket drive, and elevated final drives.

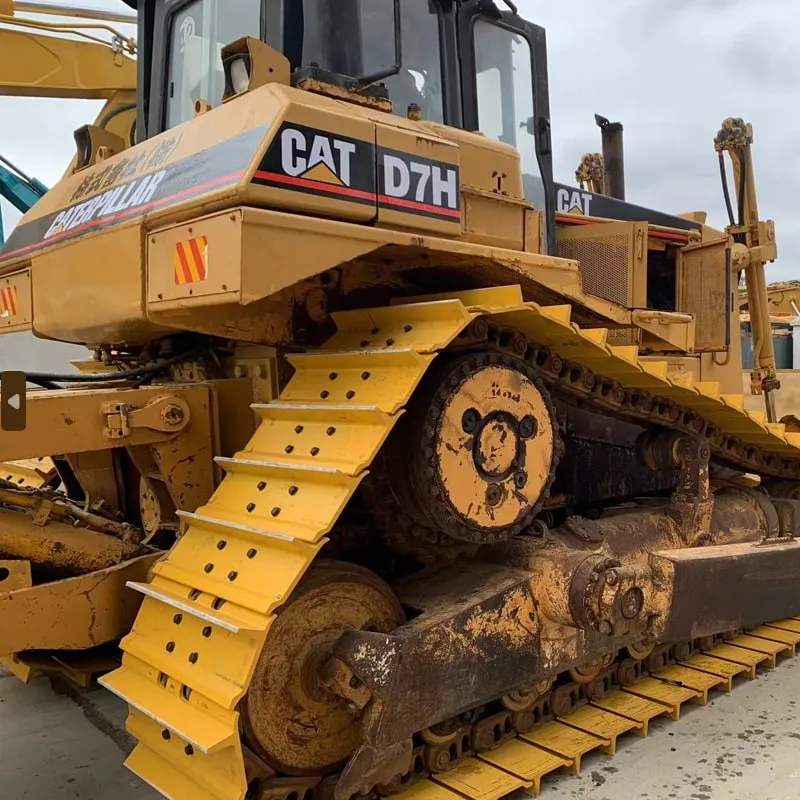

High Drive (Elevated Sprocket) Undercarriage: Introduced in the D7H (and earlier D7G/D7F variants) and refined in this generation, the elevated sprocket design moves the final drives and sprockets above the ground, protecting them from debris, rocks, and impact loads. It also allows the track frame to oscillate independently, improving ground contact and ride quality.
Integrated ROPS/FOPS Cab: The H-series features a robust Rollover Protective Structure (ROPS) and Falling Object Protective Structure (FOPS) cab or canopy, with improved sound suppression and visibility compared to older models.
Modular Component Layout: Major systems—engine, transmission, cooling, hydraulics—are arranged in a modular fashion for faster removal and installation, reducing downtime.

3. Engine and Powertrain

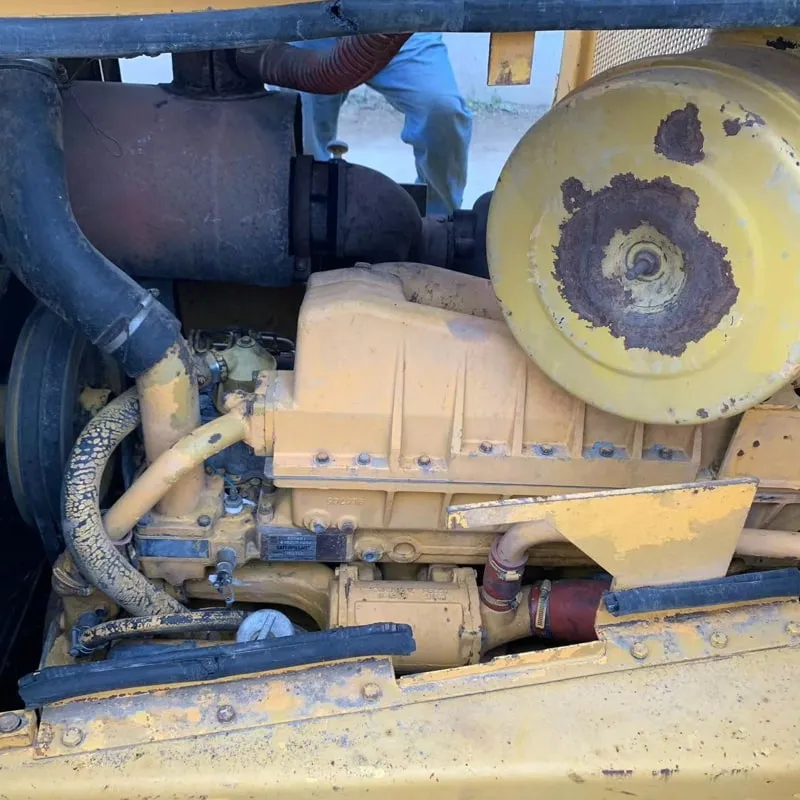

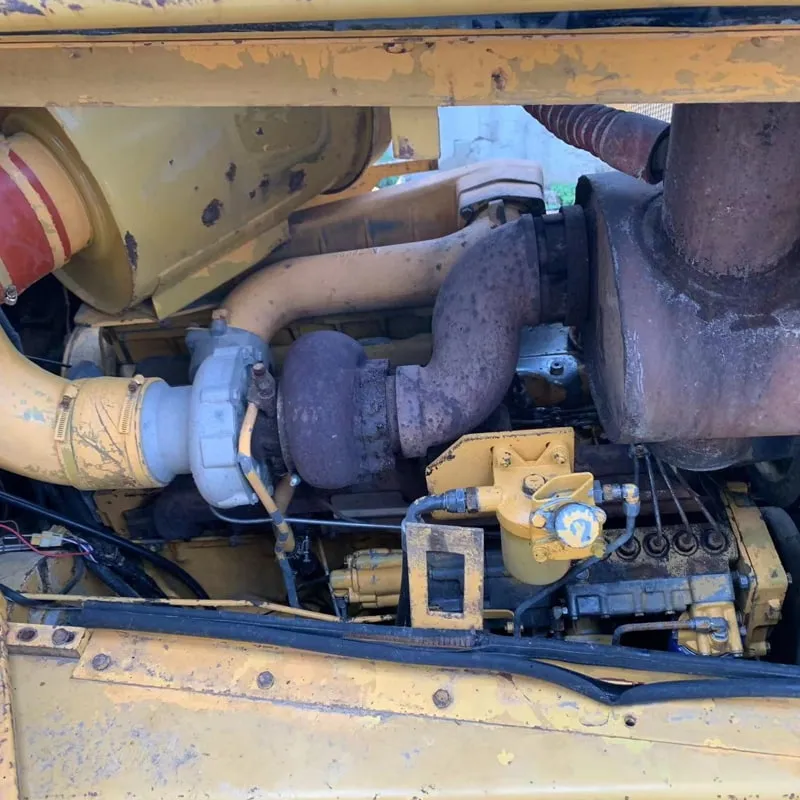

The heart of the D7H is a Caterpillar diesel engine, typically the 3306 turbocharged and aftercooled unit, known for its durability and straightforward mechanical injection.

Engine Model: Cat 3306 DITA (Direct Injection Turbocharged Aftercooled)
Configuration: Inline 6-cylinder, 4-stroke diesel
Displacement: 10.5 liters (638 cubic inches)
Power Output:
- Gross Power: ~200–215 hp (149–160 kW) depending on the exact configuration and year
- Net Power (at flywheel): ~180–200 hp (134–149 kW)
Cooling System: Radiator with blower fan, often featuring a hydraulic fan drive on later H-series models for temperature-dependent speed and quieter operation.

The 3306 engine is prized for its simple, robust design, ease of rebuild, and massive low-end torque that suits bulldozer work. Fuel injection is fully mechanical, which many owners appreciate for its reliability in remote locations.

Transmission:

Type: Cat planetary powershift transmission with 3 forward and 3 reverse speeds.
Controls: Single-lever twist-grip control for gear selection and direction, a hallmark of Cat’s H-series dozers, making operation intuitive.
Steering: Differential steering with finger-tip control (on later D7H models) or standard clutch-brake steering on earlier units. The differential steering system allowed for continuous power to both tracks during turns, improving productivity and reducing ground disturbance during grading.

4. Undercarriage and Tracks

The undercarriage is one of the D7H’s strongest attributes, built to withstand high-impact and high-wear environments.

Track Gauge: 2,235 mm (88 inches) on standard configuration.
Track Shoe Width: Options range from 560 mm (22 inches) in standard configurations to 760 mm (30 inches) or wider for low-ground-pressure (LGP) applications.
Number of Track Rollers: Usually 7 bottom rollers per side and 2 carrier rollers.
Suspended Undercarriage (Optional): Some D7H models could be equipped with a bogie suspension system, smoothing the ride and allowing higher travel speeds for finish grading and long pushes.
Sealed and Lubricated Track (SALT): Standard, dramatically extending pin and bushing life.

The elevated sprocket design reduces shock loads to the final drives because the sprocket is isolated from track frame impacts. This feature also simplifies undercarriage maintenance.

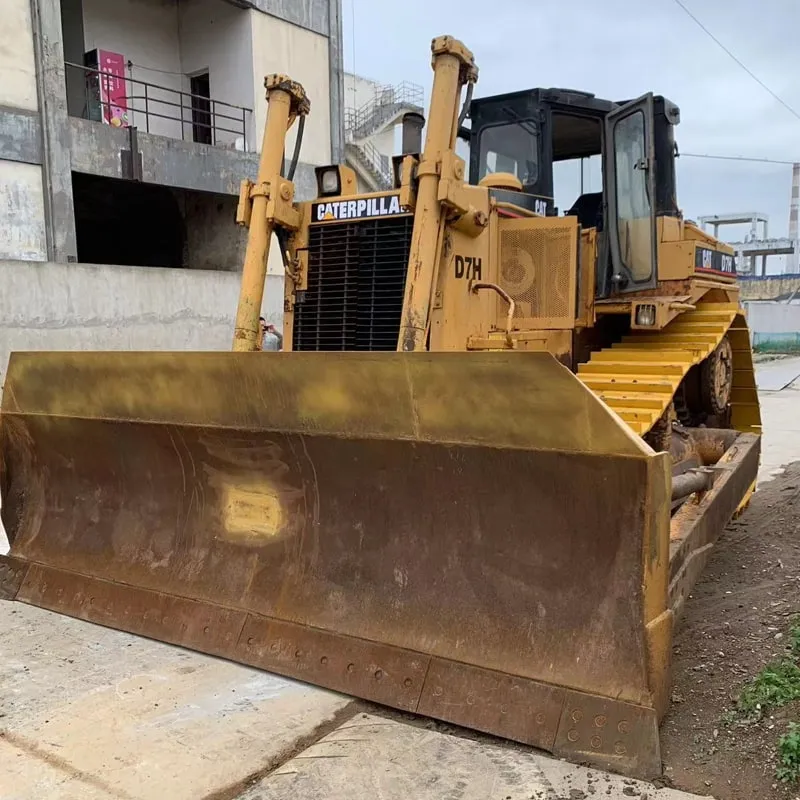

5. Work Equipment: Blades and Attachments

The D7H can be configured with several blade types, making it versatile for both heavy dozing and precision grading.

Straight Blade (S-Blade): Simple, robust blade for heavy push applications like rock stripping or deep fills. No angling capability.
Universal Blade (U-Blade): Large capacity, curved wings for moving large volumes of light material over long distances. Excellent for reclamation and coal pile work.
Semi-Universal Blade (SU-Blade): A compromise between straight and universal, offering good penetration and decent carry capacity. Popular for general earthmoving.
Angle Blade (A-Blade or Pat Blade): Can be angled up to 25 degrees left or right. Essential for grading, side-casting, ditching, and backfilling. Many contractors refer to a D7H with an angle blade as a “dozer grader” because it can effectively cut and spread material in a grading pass.
Power-Angle-Tilt (PAT) Blade: A 6-way blade (angle, tilt, pitch) controlled hydraulically from the cab. This is the most grading-friendly configuration, allowing the operator to feather the blade, tilt it to match cross-slopes, and angle it for windrowing—all on the fly.

Rear Attachments:

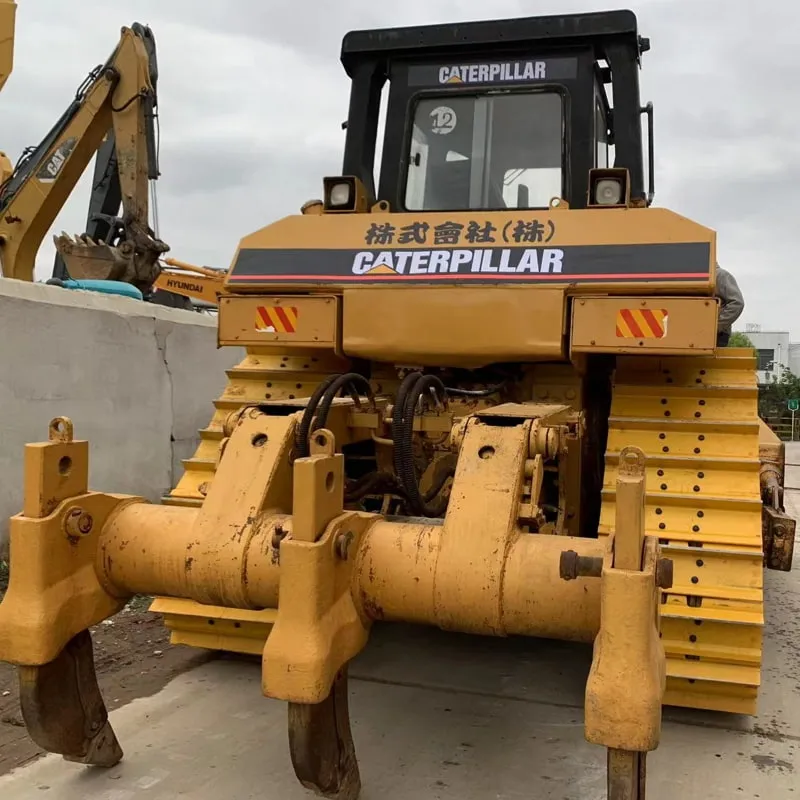

Ripper: Single or multi-shank parallelogram ripper for breaking up hard ground, rock, or frozen material.
Winch: For logging or pipeline work.
Drawbar/Counterweight: For towed scrapers or additional stability.

6. Operator Environment and Controls

The D7H cab was a major step forward in operator comfort during its time.

Seat: Adjustable, with armrests integrated into the control console.
Steering and Direction Control: Either steering levers (earlier) or a single joystick with differential steering (later H-series). The joystick allowed the operator to steer with the wrist while controlling blade functions with the other hand.
Blade Control: Hydraulic levers or pilot-operated joystick (on some models) for raise/lower, tilt, and angle. The placement is designed to minimize fatigue during long grading shifts.
Visibility: Large glass area, slim ROPS posts, and a low-profile engine hood give excellent sight lines to the blade corners and ripper. This is critical for fine grading work.
Noise and Vibration: Improved isolation mounts and cab sealing reduce in-cab noise levels to around 85 dB(A), a considerable improvement over earlier dozers.

7. Hydraulic and Electrical Systems

Hydraulic System: Gear-type pump delivering around 240–260 L/min (63–69 gpm) at rated engine speed. System pressure typically 15,500 kPa (2,250 psi). The hydraulics are responsive enough to allow precise blade feathering during finish grading.
Electrical: 24-volt starting and charging system, with heavy-duty batteries and a robust alternator. The wiring harness is simplified and modular, making diagnostics easier than on fully electronic machines that followed.

8. Dimensions and Weights (Approximate, Standard S-Blade Configuration)

Overall Length (with blade): ~5.6 m (220 in.)
Overall Width (with blade): ~3.1 m (122 in.) for an SU blade, up to 4.1 m for an angle blade
Height to Top of ROPS: ~3.4 m (134 in.)
Operating Weight: 24,000–26,000 kg (53,000–57,000 lb) depending on blade, ripper, and track shoes
Ground Pressure: 0.5–0.8 bar (7–12 psi) depending on shoe width, allowing it to work on softer ground than a comparable weight motor grader.

9. Performance and Applications

Heavy Dozing

With its 200+ hp and substantial weight, the D7H excels at large-scale cut-and-fill operations, pushing scrapers through difficult material, land clearing, and mine overburden removal.

Rough and Finish Grading

When fitted with a PAT or angle blade, the D7H becomes a formidable grading tool. It can:

Cut and spread in one pass.
Maintain a constant slope by tilting the blade to the required angle.
Wing material out to build up shoulders or fill low spots.
Perform light finish work on haul roads, leaving a surface that only needs a light motor grader pass to complete.

In many parts of the world, a D7H with a PAT blade is used as the primary grading machine on mining roads and large construction sites, where a motor grader would be too slow for the initial cut.

Ripping

The rear-mounted ripper allows the D7H to fracture rock, frozen ground, or compacted soil before grading, reducing wear on blades and speeding up excavation.

Land Reclamation and Farming

Low-ground-pressure (LGP) versions with wide tracks can float over soft soils, making them suitable for land leveling in rice paddies, wetlands, and peat areas.

10. Serviceability and Reliability

Caterpillar designed the H-series with maintenance in mind:

Ground-level access: Most fluid checks, fill points, and filter changes can be performed from ground level.
Modular components: Engine, transmission, and final drives can be removed individually without major disassembly.

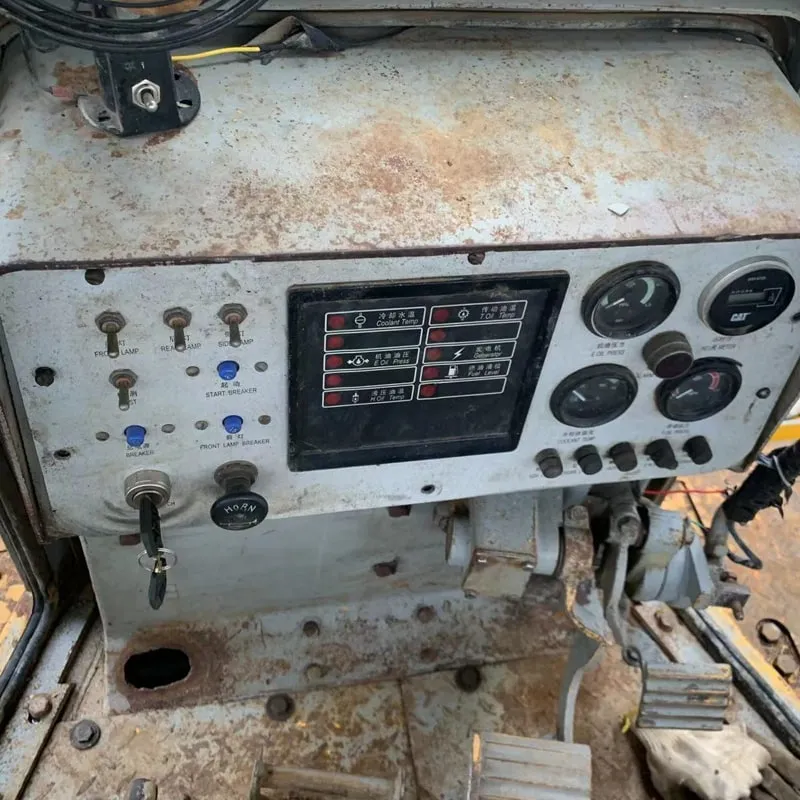

Electronic Monitoring System (EMS): An in-cab panel alerts the operator to critical conditions like low oil pressure, high coolant temperature, or clogged filters.
Parts Availability: Even though the D7H has been out of production for decades, Cat’s parts network and aftermarket support remain excellent. Many components are shared with other 3306-powered equipment.

11. Comparison with a True Motor Grader

It is important to understand why a D7H is sometimes called a “grader” but differs fundamentally from a motor grader:

Feature	Cat D7H (Dozer)	Cat 140H (Motor Grader)
Primary function	Push, cut, fill, rip	Fine grading, spreading, ditching, snowplow
Moldboard placement	Front, between tracks	Mid-frame, between long wheelbase
Blade control	4-way to 6-way (with PAT)	Full 6-way with side-shift and circle rotation
Speed range	0–10 km/h forward	0–40+ km/h forward
Ground contact	Crawler tracks, high traction	Rubber tires, lower traction
Grade precision	Good (with PAT), but limited by short base	Excellent, due to long blade base and articulation

In practice, a site might use a D7H to roughly shape a pad and then call in a motor grader for the final survey-grade surface. The D7H’s ability to handle heavy material that would stop a motor grader is why it remains a versatile grading machine in the right hands.

12. Legacy and Summary

The Caterpillar D7H represents a sweet spot in the dozer world: big enough for serious production, yet nimble enough for finish work. Its robust 3306 engine, reliable powertrain, and legendary high-drive undercarriage have made it a favorite among contractors, municipalities, and mining operations worldwide. Even today, well-maintained D7H units command strong resale prices and remain in daily use.

When someone refers to a “D7H grader,” they are almost certainly talking about this dozer set up with an angle or PAT blade for grading duties—a testament to the machine’s adaptability and the skill of its operators. It is not a motor grader, but it has earned a place in grading fleets through sheer capability and ruggedness.

In short, the Caterpillar D7H is a heavy-duty crawler tractor that, with the right blade and operator, can effectively perform rough to intermediate grading work, bridging the gap between pure dozer and dedicated grader.

Non flooded

No accident

Original product
