Used Shantui SD16 Bulldozer

Reading: 1500

It appears there may be a slight mix-up in the model designation: SHANTUI SD16 is actually a crawler bulldozer, not a motor grader. (SHANTUI motor graders use the SG series, such as the SG16.) Below is a detailed English introduction for the SHANTUI SD16 bulldozer. If you specifically need the SG16 motor grader, just let me know and I’ll provide that instead.

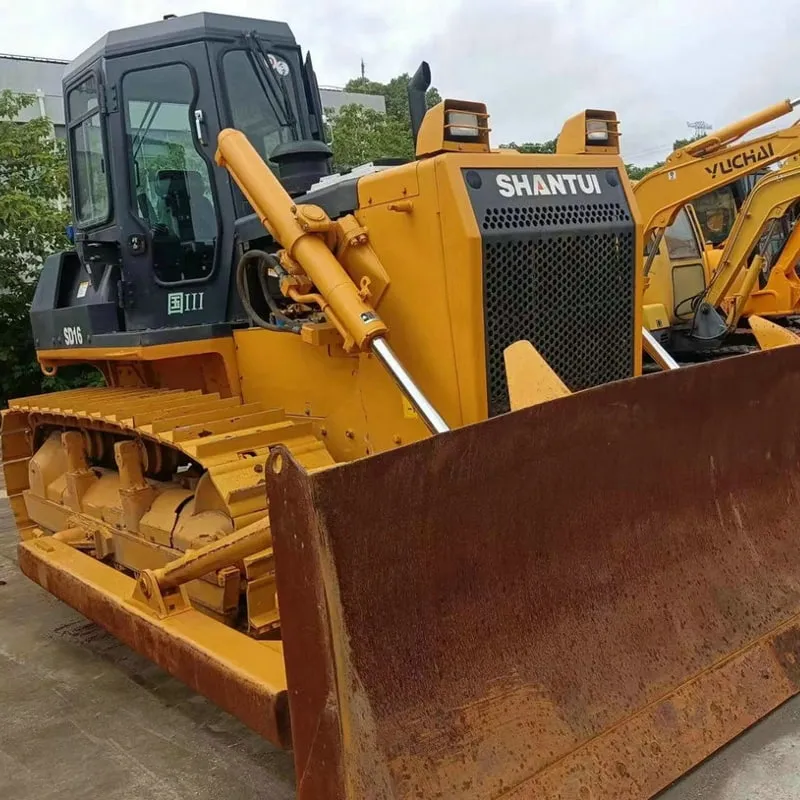

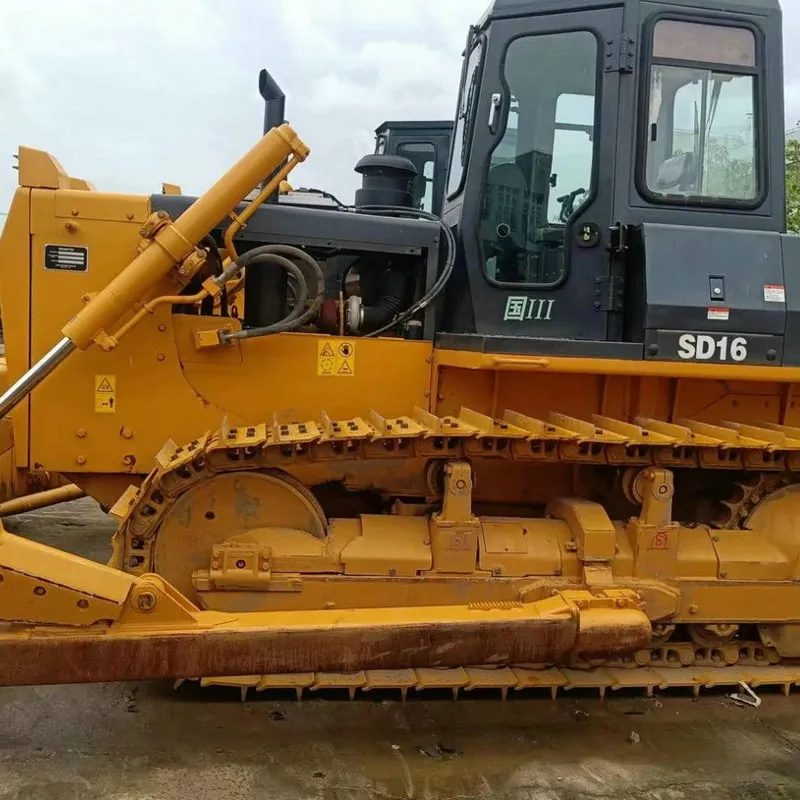

SHANTUI SD16 Crawler Bulldozer – Detailed Introduction

The SHANTUI SD16 is a 160-horsepower hydro-mechanical crawler bulldozer designed for versatility, reliability, and cost-effective performance across a wide range of earthmoving applications. As one of SHANTUI’s most popular mid-size dozers, it inherits proven technology from the Komatsu D65 lineage and incorporates modern updates to meet today’s emission standards and operator expectations. It is widely used in construction, mining, agriculture, forestry, road building, and land reclamation.

1. Overview

The SD16 combines a robust powertrain, durable undercarriage, and a comfortable operator environment. Available in multiple configurations – straight blade (S), angle blade (A), semi-U blade (SU), and specialized variants like wetland (LGP) or waste-handling versions – it adapts to different ground conditions and material types. Its balance of power, weight, and advanced hydraulic controls makes it an ideal choice for medium-duty dozing, grading, spreading, ripping, and towing tasks.

2. Key Specifications

Parameter	Specification
Operating Weight	17,000 – 18,500 kg (varies by configuration)
Engine Model	Weichai WD10G178E25 / WP10G178E355 (Tier 3/Stage IIIA equivalent)
Engine Power	120 kW (163 HP) @ 1,850 rpm
Max Torque	830 N·m @ 1,100–1,200 rpm
Displacement	9.726 L
Number of Cylinders	6, in-line
Aspiration	Turbocharged & aftercooled
Transmission	Planetary power shift, 3 forward / 3 reverse gears
Max Travel Speed	Fwd: 10.6 km/h; Rev: 12.4 km/h
Track Gauge	1,880 mm
Track Shoe Width	560 mm (standard), optional 510/610/710 mm
Ground Pressure	~65 kPa (with 560 mm shoes)
Blade Capacity (Straight)	4.5 m³ (SAE)
Blade Width (Straight)	3,385 mm
Blade Height (Straight)	1,149 mm
Max Blade Lift	1,095 mm
Max Digging Depth	540 mm
Ripper Type	Optional 3-shank parallelogram ripper
Max Ripping Depth	666 mm
Fuel Tank Capacity	300 L
Hydraulic System Pressure	14 MPa

Note: Exact figures may vary with different blade/undercarriage configurations and regional emission versions.

3. Engine & Power Train

Engine: The SD16 is powered by a Weichai WD10G/WP10G series, 6-cylinder, electronically controlled high-pressure common-rail diesel engine. It delivers strong low-speed torque, excellent fuel economy, and reliable cold-start capability down to -20°C (with pre-heating). The engine meets China Stage III emission standards (comparable to Tier 3/Stage IIIA) using an optimized combustion system without the need for SCR, reducing maintenance complexity.
Transmission: A constant-mesh planetary power shift transmission provides three forward and three reverse speeds. Shift modulation ensures smooth directional changes and reduces operator fatigue. The transmission is designed for durability under heavy loads.
Torque Converter: A single-stage, single-phase, three-element torque converter automatically adjusts output torque to match load variations, protecting the drivetrain and improving traction.
Final Drives: Two-stage reduction final drives with spur gears and floating oil seals ensure long life and easy maintenance.

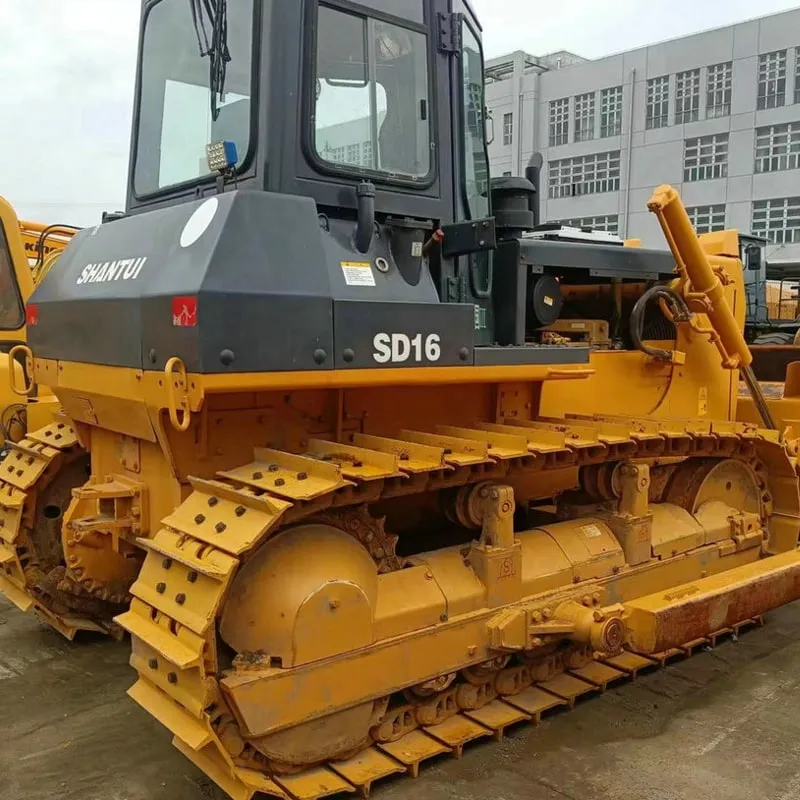

4. Undercarriage & Track System

Track Frame: Rugged, welded box-section track frames absorb shock loads and resist twisting. The track gauge is 1,880 mm, providing stable operation on slopes and uneven ground.
Suspension: Seven-roller track system with equalizer bar and pivot shaft allows the track frame to oscillate, maintaining ground contact and traction.
Sealed & Lubricated Track (SALT): The standard SALT chains use sealed pins and bushings that retain oil lubricant, significantly extending pin and bushing life and reducing internal wear. Track links and shoes are heat-treated for high strength and abrasion resistance.
Adjustment: Hydraulic track adjusters with grease cylinders make track tensioning quick and safe.
Wetland/LGP Configuration: A low ground pressure (LGP) variant (SD16L) features wider track shoes (up to 910 mm) and longer track frames, reducing ground pressure to about 30 kPa for operation on soft, marshy terrain.

5. Blade & Work Equipment

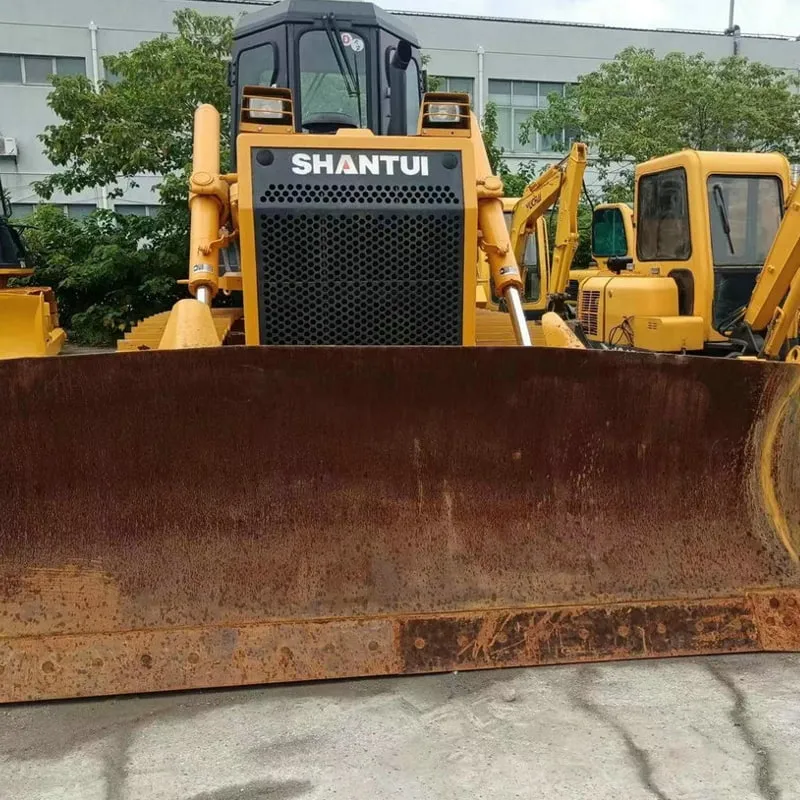

Straight Blade (S): Ideal for general dozing and grading; excellent cutting edge visibility and penetration.
Angle Blade (A): Can be angled up to 25° left or right, making it suitable for side-casting, backfilling, and ditching.
Semi-U Blade (SU): Combines the penetration of a straight blade with the carrying capacity of a U-blade; good for heavy soils and medium-distance pushes.
Blade Control: The hydraulic system uses a gear-type pump and a multi-spool control valve. The blade is controlled via a joystick for lift, tilt, and angle (on angle blade models). Blade down pressure is sufficient for firm digging.
Ripper: A rear-mounted parallelogram ripper with three shanks is available. It features adjustable shank depth and a hydraulic lift cylinder. The ripper is useful for breaking compacted soil, asphalt, or light rock.

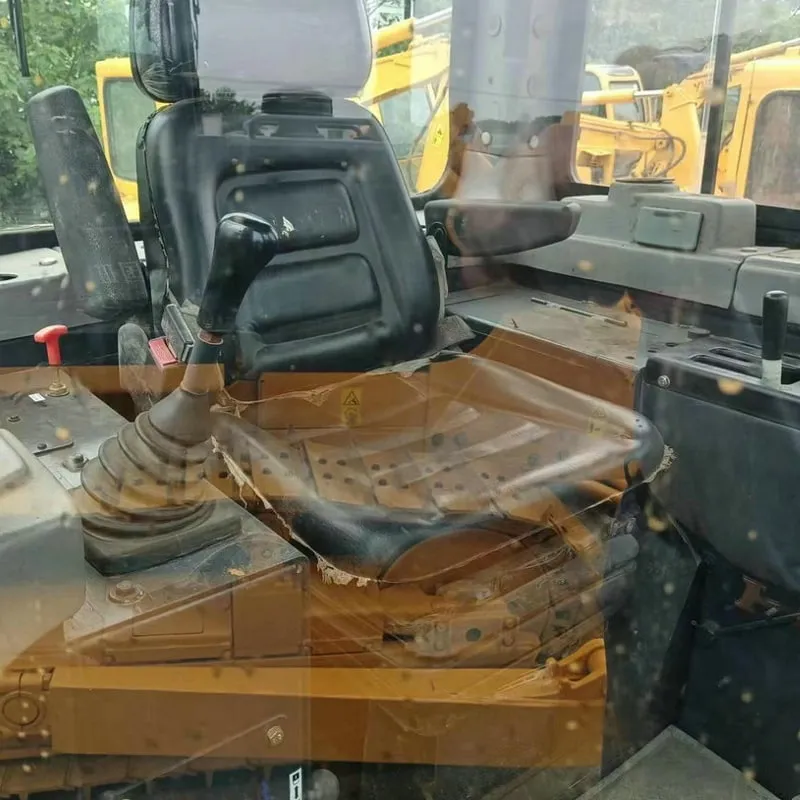

6. Operator Cabin & Comfort

ROPS/FOPS Cabin: The standard cabin integrates Roll-Over Protective Structure (ROPS) and Falling Object Protective Structure (FOPS), certified to ISO standards. Full glazing offers excellent all-round visibility.
Ergonomics: The interior is designed to reduce operator fatigue. Controls are positioned within easy reach; the single-lever blade control (PCCS – Palm Command Control System on newer models) provides low-effort, precise blade movements.
Suspension Seat: A high-back, adjustable suspension seat with retractable seat belt absorbs vibrations.
Climate Control: Available heating and air conditioning system maintains a comfortable working temperature year-round.
Noise & Vibration: Improved sealing and isolation mounts keep interior noise below 85 dB(A), meeting international standards.
Instrumentation: An integrated digital display shows engine RPM, coolant temperature, fuel level, system warnings, and hour meter. LED warning lights alert the operator to faults.

7. Features & Benefits

Proven Reliability: Inherits mature technology from the Komatsu D65 platform, with decades of continuous improvement by SHANTUI. Major structures undergo finite element analysis for stress optimization.
Fuel Efficiency: The electronically controlled high-pressure common-rail engine with optimized fuel mapping reduces consumption by up to 5–8% compared to older mechanical injection engines.

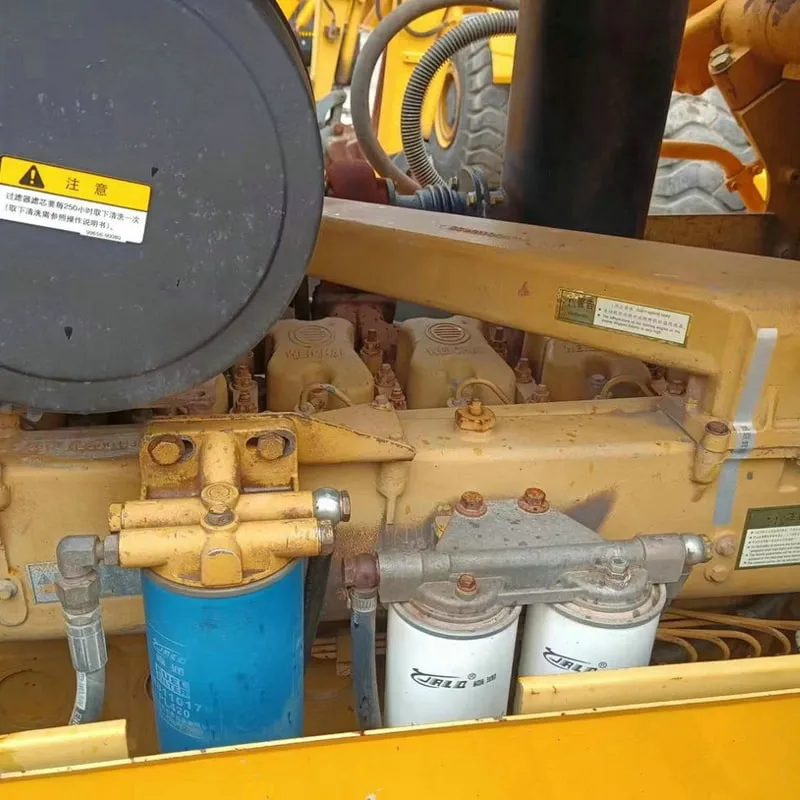

Easy Maintenance:
- Engine hood opens wide for daily checks.
- Remote-mounted oil, coolant, and hydraulic filters.
- Centralized pressure test ports for hydraulic system diagnostics.
- Extended service intervals (engine oil: 500 hours; hydraulic oil: 1,000 hours).
Versatility: A wide range of factory options and attachments (ripper, winch, drawbar, towing hitch, sweeper, etc.) allows the SD16 to be tailored to specific tasks.
Safety: Standard ROPS/FOPS cab, anti-slip walkways, handrails, rearview camera (optional), and emergency stop switch enhance on-site safety.

8. Typical Applications

Construction: Site preparation, foundation backfilling, grading, spreading fill material.
Mining & Quarrying: Stockpile management, haul road maintenance, reclamation.
Agriculture: Land clearing, terracing, pond and canal construction.
Forestry: Firebreak creation, trail building, land clearing (with forestry guarding package).
Waste Management: Solid waste spreading and compaction (with special waste-handling guards).
Road Works: Embankment filling, slope cutting, shoulder trimming.

9. Optional Attachments & Configurations

Straight Blade (S), Angle Blade (A), Semi-U Blade (SU)
3-Shank Parallelogram Ripper
Heavy-Duty Drawbar & Towing Hitch
Hydraulic Winch (for logging or recovery)
Waste-Handling Package (perforated hood, final drive guards, front/rear striker bars)
Forestry Sweeps & Cab Screens
LGP (Low Ground Pressure) Undercarriage
Air Conditioning System
LED Working Lights Package
Rearview Camera & Monitor
GPS/GNSS Machine Control System (Trimble/Topcon ready)

10. Conclusion

The SHANTUI SD16 bulldozer is a workhorse that delivers a compelling blend of performance, durability, and low operating cost. Its comfortable cabin, easy serviceability, and wide array of configurations make it a popular choice for contractors and fleet owners who need a reliable machine that can handle a variety of medium-duty earthmoving tasks. Whether on a construction site, a mine, or a farm, the SD16 consistently proves its value as a productive and economical dozer.

If you were actually looking for the SHANTUI SG16 motor grader, I would be happy to provide a similarly detailed introduction. Just let me know.

Non flooded

No accident

Original product

Used Shantui SD16 Bulldozer
