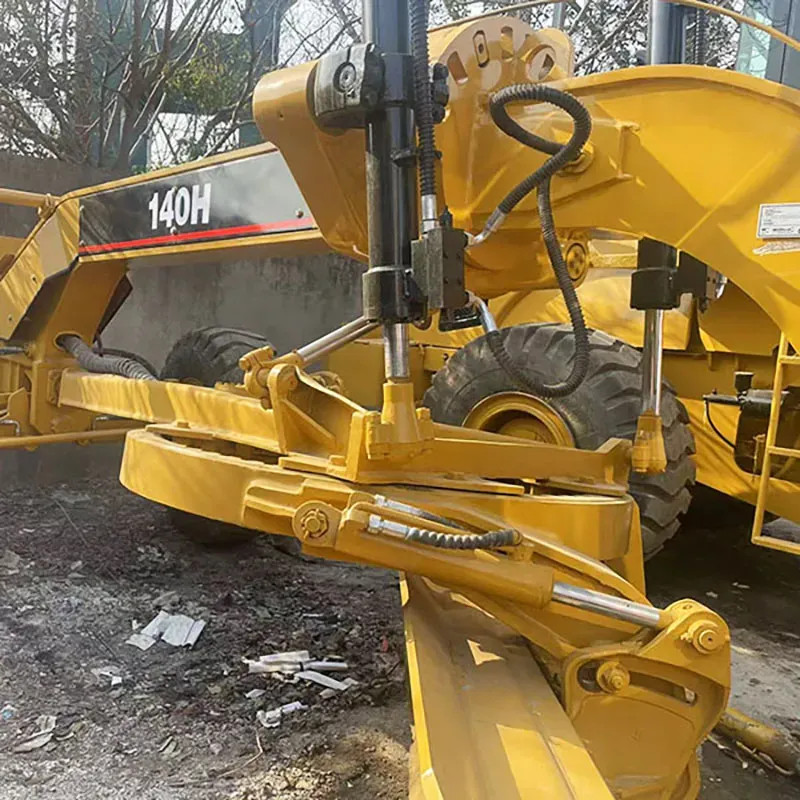

Used Caterpillar 140H Grader

Reading: 2065

Caterpillar 140H Motor Grader — Detailed Overview

Before diving into the details, it is important to clarify a common terminology mix-up: the Caterpillar 140H is a motor grader, not a bulldozer. While a bulldozer (track-type tractor) pushes material with a front-mounted blade, a motor grader uses a long, adjustable blade located between the front and rear axles to create flat, graded surfaces with high precision. The 140H is one of the most popular and widely respected motor graders ever built by Caterpillar.

1. Historical Context & Model Position

The 140H was introduced in 1995 as part of Caterpillar’s H-Series motor grader family, replacing the long-running and highly successful 140G. It remained in production until the mid-2000s, when it was superseded by the 140H Global and eventually the M-Series (140M). The “140” size class represents the workhorse of the Cat grader line — large enough for heavy production, yet nimble enough for finish work and road maintenance. The “H” denotes the generation that brought significant advances in operator comfort, electronic controls, and powertrain efficiency.

2. Engine & Power

The 140H is typically powered by the Caterpillar 3306 DITA (Direct Injection Turbocharged Aftercooled) diesel engine. This is a 6-cylinder, 10.5-litre inline engine known for exceptional durability and low-end torque.

Standard Power: 150 net horsepower (112 kW) @ 2,200 rpm.
VHP (Variable Horsepower) Option: Many 140H units were equipped with VHP, which automatically increases power in higher gears (typically 4th through 8th forward). With VHP, output rises to approximately 185 horsepower (138 kW) at 2,200 rpm. This provides extra muscle for roading, heavy blading, or climbing grades without sacrificing fuel economy during light-duty work.
Torque Rise: The engine delivers strong torque rise (around 25%), ensuring the grader maintains blade load without stalling during tough cuts.

The 3306 engine is mechanically governed in earlier models, while later H-Series units (sometimes referred to as 140H “Enhanced” or with certain serial number breaks) incorporated an electronic engine governor for smoother response and diagnostics.

3. Transmission & Drivetrain

The 140H uses a direct-drive, power-shift transmission with an inline countershaft design. This transmission is famed for its smooth, on-the-go shifting and minimal power loss.

Gears: 8 forward speeds and 6 reverse speeds, providing a working speed range from creeper gears for fine grading (approx. 2.3 mph / 3.7 km/h in 1st gear) up to a roading speed of around 27 mph (43.5 km/h) in 8th gear.
Shifting: A single-lever, integrated control allows the operator to shift direction and gear quickly. The transmission is pressure-lubricated and designed for long life under constant directional changes.
Tandem Drive Axle: Power is delivered to the rear axles via a Caterpillar-designed tandem drive housing with an inter-axle differential. The standard differential can be locked for maximum traction in slippery conditions, or an optional no-spin differential automatically transfers power to the wheel with the best grip.
All-Wheel Drive (AWD): An optional front-wheel hydrostatic drive system was available on the 140H. When engaged (typically in lower gears), it turns the front wheels into drive wheels, dramatically increasing traction for working on slopes, in snow, or on loose material. The AWD system can be engaged on demand and is completely transparent to the operator.

4. Blade & Moldboard

The defining feature of any motor grader is its blade, and the 140H offers extensive versatility.

Standard Moldboard: 12 feet (3.66 m) long, 24 inches (610 mm) high, and 0.875 inches (22 mm) thick, made of high-carbon steel with hardened cutting edges and end bits.
Optional Moldboards: A 14-foot (4.27 m) blade is common for applications requiring wider reach, such as ditching or large-area levelling.
Blade Geometry: The blade can be hydraulically positioned for 360-degree rotation (via the circle), side-shifted left or right, tilted forward or backward, and raised/lowered. The circle is rotated by a powerful hydraulic motor driving a gear-and-pinion arrangement, which reduces wear and eliminates the need for a mechanical chain.
Drawbar & Circle: The drawbar is a heavy-duty fabricated box-section design with a replaceable wear strip system. The circle is cast iron with induction-hardened teeth for long service life. The “A-frame” drawbar suspension allows the blade to follow ground contours while maintaining consistent cutting depth.

5. Hydraulic System & Controls

The 140H introduced significant improvements in hydraulics over the G-Series.

Load-Sensing Hydraulics: A variable-displacement piston pump provides oil only when needed, reducing parasitic load on the engine and heat generation. This proportional priority system ensures consistent implement speed regardless of engine rpm, giving the operator very fine control for finish work.
Hydraulic Flow: System pressure is typically around 3,000 psi (20,700 kPa), with adequate flow to operate multiple functions simultaneously (e.g., raising the blade while adjusting the circle rotation).
Operator Controls: Early 140H models retained low-effort mechanical pilot valves (levers) that are extremely reliable and give direct feedback. Later “Enhanced” models may include low-effort pilot-hydraulic controls with adjustable wrist rests. Steering is via a full hydraulic orbitrol system with a tiltable steering wheel, giving light, responsive steering even at standstill.

6. Operator Station & Comfort

Compared to its predecessor, the 140H cab marked a leap forward in operator environment.

ROPS/FOPS Cab: The integrated roll-over protective structure is rubber-isolated from the main frame to reduce vibration and noise. Interior sound levels are typically below 75 dB(A).
Visibility: The cab features large, tinted windows, a sloped rear engine hood, and a narrow front console, providing excellent all-around visibility to the blade toe, circle, and tires.
Seat & Controls: An air-suspension seat with multi-axis adjustment is standard. All main controls are positioned on a right-hand console that adjusts with the seat. The steering wheel and levers are placed to minimize operator fatigue during long shifts.
Monitoring System: An electronic monitoring system (EMS) provides dash-mounted alerts for engine coolant temperature, hydraulic oil temperature, transmission oil temperature, air cleaner restriction, and electrical system voltage. Gauges are easy to read at a glance.

7. Frame & Articulation

The 140H uses a heavy-duty, box-section frame with an articulated center joint that provides up to 20 degrees of articulation left or right. Combined with the front wheel lean (up to 15 degrees each side), the grader can achieve a very tight turning radius (approximately 26 feet / 7.9 m). Articulation allows the machine to crab steer, offset the moldboard for slope work, and grade tight cul-de-sacs. A durable center-pin joint with hardened bushings is designed to withstand high twisting forces.

8. Attachments & Optional Equipment

The 140H can be configured for a wide range of tasks:

Rear Ripper / Scarifier: A hydraulically controlled rear-mounted ripper with 3 to 5 shanks is extremely common for breaking up compacted material or asphalt before grading. Some models have a mid-mounted scarifier.
Front Bulldozer Blade: A straight or angle blade can be mounted on the front frame for light dozing, spreading, or clearing debris. This is likely where the confusion with “bulldozer” arises, but the front blade is secondary to the main grading blade.
Snow Equipment: Front V-plows, snow wings, and reversible snowplows are popular in northern climates. Tire chains are also a common addition.
Auto Blade Control: Some later 140H models could be equipped with early versions of automatic blade control systems (e.g., laser or sonic grade control) for precision grading.
Counterweights & Push Blocks: For heavy ripping or pushing, additional frame-mounted counterweights and a rear push block are available.

9. Key Specifications (Typical Configuration)

Parameter	Value
Engine Model	Cat 3306 DITA
Gross Power (Standard)	150 hp (112 kW)
Gross Power (VHP)	185 hp (138 kW)
Operating Weight (approx.)	30,000 – 33,000 lb (13,600 – 15,000 kg)
Standard Moldboard	12 ft x 24 in (3.66 m x 610 mm)
Max Blade Side Reach (Left/Right)	Approx. 6.5 ft (2.0 m)
Max Lift Above Ground	Approx. 17 in (432 mm)
Max Cutting Depth	Approx. 29 in (735 mm)
Turning Radius (outside front tire)	Approx. 26 ft (7.9 m)
Articulation Angle	20° left/right
Front Wheel Lean	15° left/right
Transmission	Direct-drive powershift, 8F / 6R
Fuel Tank Capacity	83 US gal (314 L)

10. Applications & Legacy

The 140H excels in:

Road construction & maintenance: Spreading and trimming base gravel, fine grading, ditching.
Mining & quarrying: Haul road maintenance, safety berm construction.
Commercial & industrial site prep: Large pad levelling.
Snow removal: With appropriate attachments, it is a high-speed snow-clearing machine.
Agriculture: Land forming, terrace building, and irrigation channel maintenance.

The 140H earned a reputation as a bulletproof, operator-friendly machine that is easy to service and rebuild. Even decades after the last unit rolled off the assembly line, thousands of 140H graders remain in active service worldwide, supported by a vast network of aftermarket parts. Its blend of mechanical simplicity (especially the 3306 engine), precise hydraulics, and robust structures makes it a benchmark in the motor grader industry. If you are researching this model, you are looking at one of the most successful pieces of earthmoving equipment ever manufactured.

Non flooded

No accident

Original product
