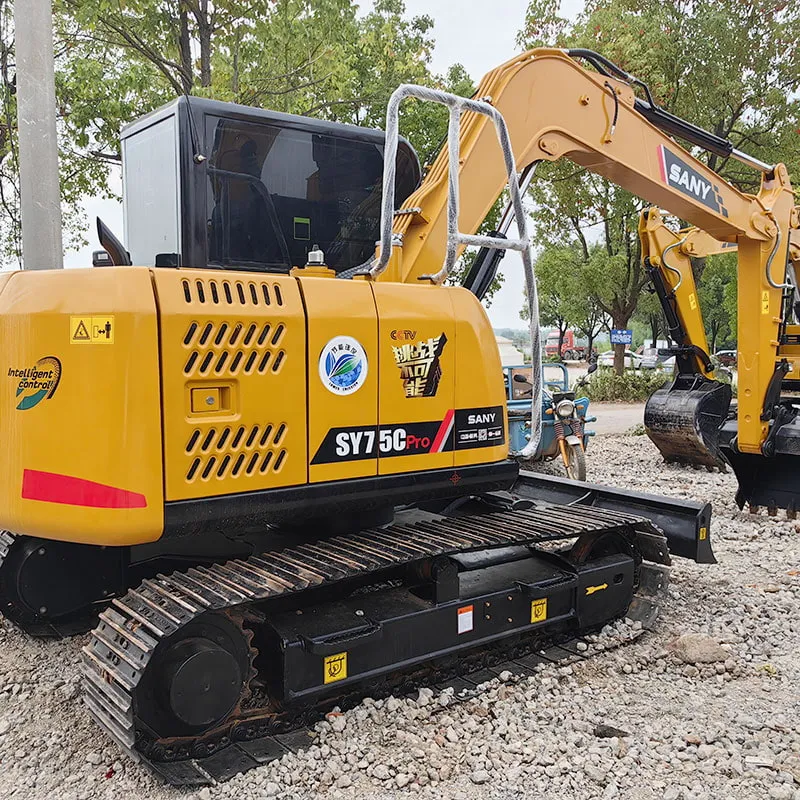

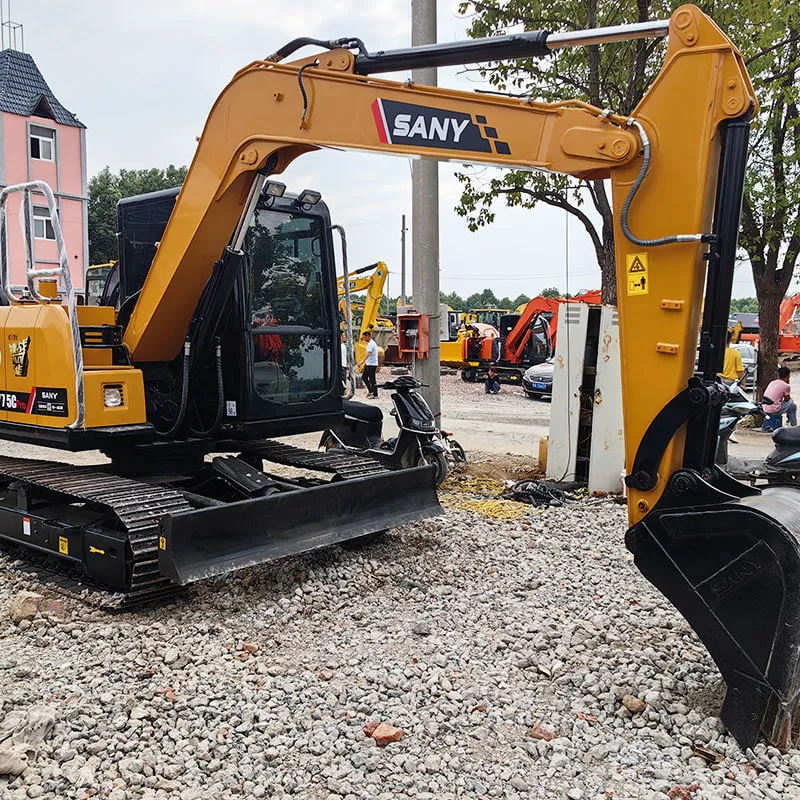

Used Sany 75 Excavator

Reading: 2011

SANY SY75C (SANY 75) Compact Crawler Excavator Detailed Introduction

The SANY SY75C (commonly referred to as SANY 75) is a 7.5-ton class high-performance compact crawler excavator developed by SANY Heavy Industry, the world’s top 3 construction machinery manufacturer. As a star model in the 7-8 ton small excavator segment, it features high fuel efficiency, strong reliability, and low operation cost, and has been one of the best-selling small excavators globally for consecutive years, with cumulative global sales exceeding 200,000 units as of 2024.

Key Specifications

Item	Parameter
Operating Weight	7,280 – 7,650 kg (varies with bucket, counterweight and attachment configuration)
Rated Power	43 kW / 2,200 rpm (equipped with Yanmar 4TNV98C electronic injection diesel engine, compliant with Euro Stage V / US EPA Tier 4 Final / China National IV emission standards; Tier 3/Stage IIIA version is available for emerging markets)
Standard Bucket Capacity	0.12 – 0.32 m³
Bucket Digging Force	56 kN
Arm Digging Force	38 kN
Max Digging Depth	4,020 mm
Max Digging Radius	6,240 mm
Max Dumping Height	4,480 mm
Travel Speed	2.8 / 4.8 km/h (2 gears adjustable)
Swing Speed	11 rpm
Fuel Tank Capacity	130 L
Hydraulic Oil Tank Capacity	90 L
Max Wading Depth	700 mm

Core Advantages

1. High Efficiency & Ultra-low Fuel Consumption

Matched with SANY’s proprietary positive flow control hydraulic system, it has 15% faster action response speed and smoother compound operation (digging, swinging, and loading linkage) than peer models, with 8% higher overall operation efficiency.
The optimized power-hydro matching algorithm reduces invalid power loss greatly: comprehensive fuel consumption is only 3.5-5 L per hour under standard working conditions, 10-15% lower than competing products, cutting operation costs significantly.

2. Excellent Durability & Adaptability

Core structural parts (boom, arm, X-type chassis) are made of high-strength wear-resistant steel, and have passed 10,000 hours of extreme condition tests (high altitude, -30℃ cold, high dust, high humidity environments), with service life 20% longer than similar products.
The extended chassis and standard 400mm widened track shoes provide super stability, no tipping risk even when working on 30° slopes or uneven sites. It adapts to various scenarios including farm water conservancy, municipal dredging and mountainous construction.

3. Comfortable & Safe Operating Experience

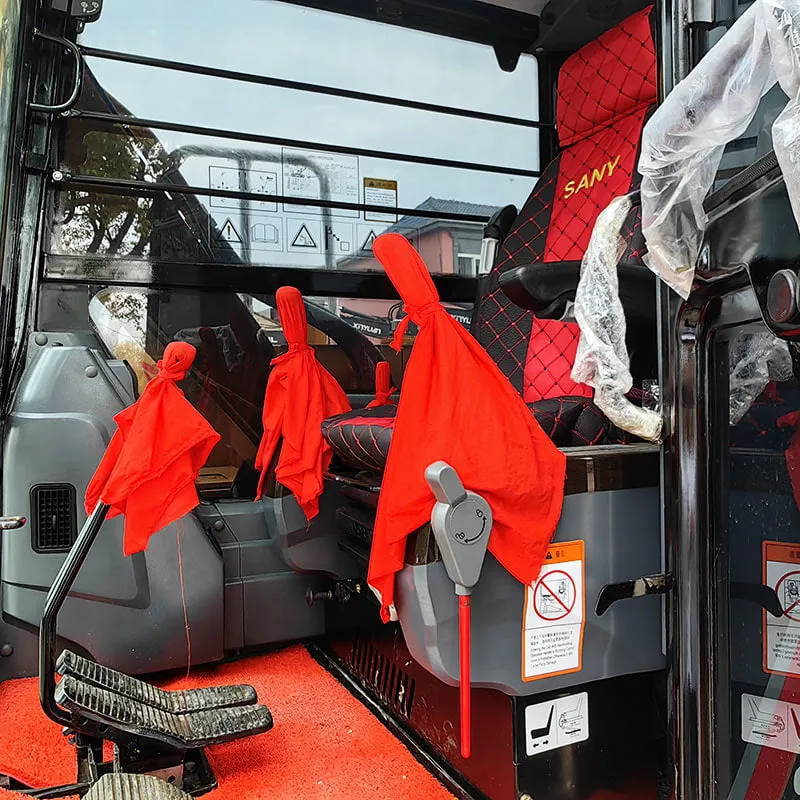

The cab is certified with ROPS (Roll-over Protective Structure) and FOPS (Falling Object Protective Structure), providing all-round safety protection for operators.
3-layer sound insulation design reduces interior operating noise to only 72dB, equivalent to the noise level of civilian passenger cars.
Standard configurations include 6-way adjustable air suspension seat, high-efficiency heating and cooling air conditioning, 10+ storage spaces, USB charging port, and large intelligent LCD monitor that displays real-time operation data, fault alarm and maintenance reminder. Standard reversing camera and multi-position emergency stop switch further reduce safety risks.

4. Low Maintenance Cost

All daily maintenance points are arranged on the accessible side of the fuselage, no need to climb the body for routine inspection and parts replacement.
High-quality filter parts extend the oil and filter replacement interval to 500 hours, and hydraulic oil replacement interval to 5,000 hours, reducing comprehensive maintenance cost by 30% compared with peer models.
SANY has more than 10,000 after-sales service outlets worldwide, providing 24-hour on-site service in most regions. Core parts enjoy a 3-year/7,000-hour warranty, eliminating user worries. The 3-year resale rate of SANY 75 is kept above 65%, 10% higher than competing products.

Applicable Scenarios & Optional Attachments

The SANY 75 is suitable for light to medium-duty operations including:

Municipal engineering: Trench digging, pipe laying, road repair, landscaping, green belt maintenance
Agricultural engineering: Farmland renovation, orchard management, greenhouse construction, water conservancy ditch cleaning
Small demolition: Interior decoration demolition, small building dismantling, construction waste cleaning
Material handling: Sand, gravel, coal and bulk material loading

It supports customized optional attachments including hydraulic breaker, log grab, auger, ripper, snow plow, quick hitch, rubber track, etc., to meet diversified operation demands.

Non flooded

No accident

Original product

Used Sany 75 Excavator
